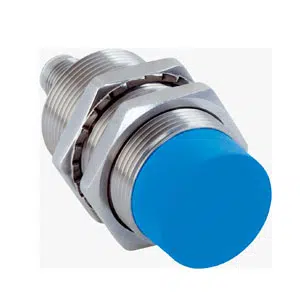

IMB30-20NPOVC0S: 1072839 - Sick 16.2 mm Non-flush Inductive Sensor
The Sick IMB30-20NPOVC0S Proximity Sensor provides 20 mm sensing range, 16.2 mm safe distance, M30 non-flush installation capability operation. This Sick proximity sensor uses PNP normally open output, DC 3-wire wiring, 500 Hz switching frequency, M12 4-pin connector, and IP68/IP69K enclosure, includes resistance to coolant lubricants and IO-Link support, and is positioned under the Sick brand within Sick Proximity Sensors, classified in the IM18 series for industrial automation environments.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Product | IMB30-20NPOVC0S |
Sick 16.2 mm Non-flush Inductive Sensor IMB30-20NPOVC0S, 1072839 Technical Specifications:
| Specification | Value |
|---|---|
| Housing | Cylindrical thread design, Standard design |
| Thread size | M30 x 1.5 |
| Diameter | Γ 30 mm |
| Sensing range Sn | 20 mm |
| Safe sensing range Sa | 16.2 mm |
| Installation type | Non-flush |
| Switching frequency | 500 Hz |
| Connection type | Male connector M12, 4-pin 1) |
| Switching output | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 2), IP69K 3) |
| Special features | Resistant against coolant lubricants, Visual adjustment indicator, IO-Link, Temperature resistance |
| Special applications | Zones with coolants and lubricants, Mobile machines, Difficult application conditions |
| Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) |
Give Us a Call for Sick 16.2 mm Non-flush Inductive Sensor IMB30-20NPOVC0S part no: 1072839 with budget-friendly prices. Technical Attributes are IMB30-20NPOVC0S, 1072839 includeCylindrical thread design, Standard design housing, M30 x 1.5 thread size, Γ 30 mm diameter, 20 mm sensing range, Non-flush Installation, 500 Hz frequency, Male connector M12, 4-pin , Connection type, PNP, Switching output, NO output, DC 3-wire ,Electrical wiring. Navigate Your Needs with a Quote for your requirement of Sick 16.2 mm Non-flush Inductive Sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
