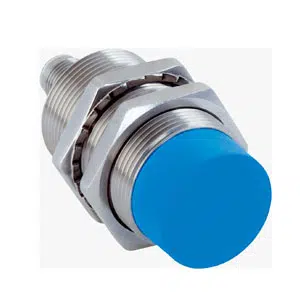

IMB30-20NNSVC0S: 1070175 - Sick M30 20 mm Inductive Sensor
The Sick IMB30-20NNSVC0S Proximity Sensor delivers 20 mm sensing range with M30 housing and NPN normally open output capability. This Sick proximity sensor supports non-flush installation, DC 3-wire wiring, M12 4-pin connector, and IP68/IP69K enclosure, with resistance to coolant lubricants and IO-Link support, and is identified as IMB30-20NNSVC0S within the Sick portfolio under Sick Proximity Sensors, classified in the IM18 series for industrial automation sensing.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Product | IMB30-20NNSVC0S |
Sick M30 20 mm Inductive Sensor IMB30-20NNSVC0S, 1070175 Technical Specifications:
| Specification | Value |
|---|---|
| Housing | Cylindrical thread design, Standard design |
| Thread size | M30 x 1.5 |
| Diameter | Γ 30 mm |
| Sensing range Sn | 20 mm |
| Safe sensing range Sa | 16.2 mm |
| Installation type | Non-flush |
| Switching frequency | 500 Hz |
| Connection type | Male connector M12, 4-pin 1) |
| Switching output | NPN |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 2), IP69K 3) |
| Special features | Resistant against coolant lubricants, Visual adjustment indicator, IO-Link, Temperature resistance |
| Special applications | Zones with coolants and lubricants, Mobile machines, Difficult application conditions |
| Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) |
IndMALL Offers Sick M30 20 mm Inductive Sensor IMB30-20NNSVC0S part no: 1070175 at economical Choices. Product Tech Specs of IMB30-20NNSVC0S, 1070175 includeCylindrical thread design, Standard design housing, M30 x 1.5 thread size, Γ 30 mm diameter, 20 mm sensing range, Non-flush Installation, 500 Hz frequency, Male connector M12, 4-pin , Connection type, NPN, Switching output, NO output, DC 3-wire ,Electrical wiring. Now's the Time to Secure a Quote for your requirement of Sick M30 20 mm Inductive Sensor. Trust in our superior pricing and more dedicated support over other Distributors.
