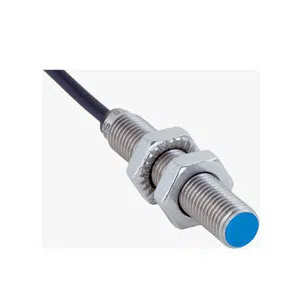

IMB08-02BPSVU2S: 1072683 - Sick M8 Flush Inductive Sensor
Technical Specifications of Sick M8 Flush Inductive Sensor IMB08-02BPSVU2S 1072683:
| Spec | Value |
|---|---|
| Housing | Cylindrical thread design, Standard design |
| Thread size | M8 x 1 |
| Diameter | Ø 8 mm |
| Sensing range Sn | 2 mm |
| Installation type | Flush |
Sick M8 Flush Inductive Sensor IMB08-02BPSVU2S, 1072683 Technical Specifications:
| Specification | Value |
|---|---|
| Housing | Cylindrical thread design, Standard design |
| Thread size | M8 x 1 |
| Diameter | Ø 8 mm |
| Sensing range Sn | 2 mm |
| Safe sensing range Sa | 1.62 mm |
| Installation type | Flush |
| Switching frequency | 4,000 Hz |
| Connection type | 2 m Cable |
| Switching output | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 1), IP69K 2) |
| Special features | Resistant against coolant lubricants, Visual adjustment indicator, IO-Link, Temperature resistance |
| Special applications | Zones with coolants and lubricants, Mobile machines, Difficult application conditions |
| Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) |
Please speak to our Technical Engineer for Sick M8 Flush Inductive Sensor IMB08-02BPSVU2S part no: 1072683 at attractive prices. Technical Specs Summary of IMB08-02BPSVU2S, 1072683 includes Cylindrical thread design, Standard design housing, M8 x 1 thread size, Ø 8 mm diameter, 2 mm sensing range, Flush Installation, 4,000 Hz frequency, 2 m Cable, Connection type, PNP, Switching output, NO output, DC 3-wire ,Electrical wiring. Match Your Needs with a Quote for your requirement of Sick M8 Flush Inductive Sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
