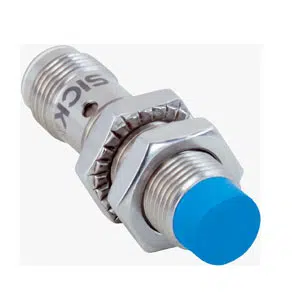

IMB12-08NNPVC0K: 1076280 - Sick Complementary Inductive Sensor
The Sick IMB12-08NNPVC0K Proximity Sensor provides 8 mm sensing range, M12 short-body housing, and NPN complementary output operation capability. This Sick proximity sensor supports non-flush installation, 2,000 Hz switching frequency, DC 4-wire wiring, M12 4-pin connector, and IP68/IP69K enclosure with resistance to coolant lubricants and IO-Link support, and belongs to the Sick portfolio under Sick Proximity Sensors, classified within the IM18 series for demanding industrial environments.
| Brand | Sick |
| Product Type | Proximity Sensor |
| Product | IMB12-08NNPVC0K |
Sick Complementary Inductive Sensor IMB12-08NNPVC0K, 1076280 Technical Specifications:
| Specification | Value |
|---|---|
| Housing | Cylindrical thread design, Short-body |
| Thread size | M12 x 1 |
| Diameter | Γ 12 mm |
| Sensing range Sn | 8 mm |
| Safe sensing range Sa | 6.48 mm |
| Installation type | Non-flush |
| Switching frequency | 2,000 Hz |
| Connection type | Male connector M12, 4-pin 1) |
| Switching output | NPN |
| Output function | Complementary |
| Electrical wiring | DC 4-wire |
| Enclosure rating | IP68 2), IP69K 3) |
| Special features | Resistant against coolant lubricants, Visual adjustment indicator, IO-Link, Temperature resistance |
| Special applications | Zones with coolants and lubricants, Mobile machines, Difficult application conditions |
| Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) |
Give Us a Call for Sick Complementary Inductive Sensor IMB12-08NNPVC0K part no: 1076280 with budget-friendly prices. Technical Attributes are IMB12-08NNPVC0K, 1076280 includeCylindrical thread design, Short-body housing, M12 x 1 thread size, Γ 12 mm diameter, 8 mm sensing range, Non-flush Installation, 2,000 Hz frequency, Male connector M12, 4-pin , Connection type, NPN, Switching output, Complementary output, DC 4-wire ,Electrical wiring. Navigate Your Needs with a Quote for your requirement of Sick Complementary Inductive Sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
