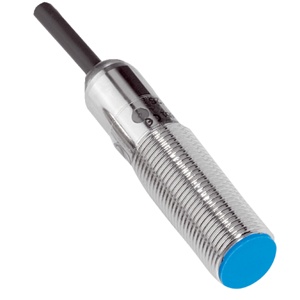

Home Sick Proximity Sensor IME12-04BPSZQDK Sick IME12-04BPSZQDK Proximity Sensor The Sick IME12-04BPSZQDK Proximity Sensor offers a Metric; Short-body , 4 mm sensing range, Flush installation type, PNP NO output, and Cable with M12 male connector, 4-pin, 150 mm connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IME Series.
Brand Sick Product Type Proximity Sensor Model Number IME12-04BPSZQDK
Sick IME12-04BPSZQDK Proximity Sensor – Technical Specifications Specification Value Housing Metric; Short-body Thread size M12 1 Diameter Ø 12 mm Sensing range Sn 4 mm Installation type Flush Switching frequency 2,000 Hz Connection type Cable with M12 male connector, 4-pin, 150 mm Switching output PNP Output function NO Electrical wiring DC 3-wire Supply voltage 10 V DC ... 30 V DC Enclosure rating IP67 1) Ripple ≤ 10 % Voltage drop ≤ 2 V 1) Time delay before availability ≤ 100 ms Hysteresis 5 % ... 15 % Reproducibility ≤ 2 % 2) 3) Temperature drift (of Sr) ± 10 % Continuous current Ia ≤ 200 mA No load current ≤ 10 mA Ambient operating temperature –25 °C ... +75 °C Housing material Brass, nickel-plated Sensing face material Plastic, PA 66 Housing length 44 mm Thread length 29 mm Tightening torque, max. ≤ 12 Nm
