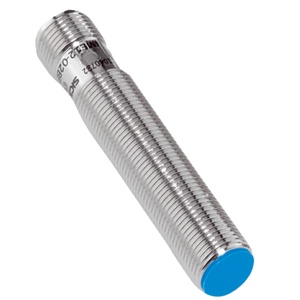

Home Sick Proximity Sensor IME12-04BPSZC0SS71 Sick IME12-04BPSZC0SS71 Proximity Sensor The Sick IME12-04BPSZC0SS71 Proximity Sensor offers a Metric; Standard design , 4 mm sensing range, Flush installation type, PNP NO output, and Male connector M12, 4-pin connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IME Series.
Brand Sick Product Type Proximity Sensor Model Number IME12-04BPSZC0SS71
Sick IME12-04BPSZC0SS71 Proximity Sensor β Technical Specifications Specification Value Housing Metric; Standard design Thread size M12 1 Diameter Γ 12 mm Sensing range Sn 4 mm Safe sensing range Sa 3.24 mm Installation type Flush Switching frequency 2,000 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function NO Electrical wiring DC 3-wire Supply voltage 10 V DC ... 30 V DC Enclosure rating IP67 1) Ripple β€ 10 % Voltage drop β€ 2 V 1) Time delay before availability β€ 100 ms Hysteresis 5 % ... 15 % Reproducibility β€ 2 % 2) 3) Temperature drift (of Sr) Β± 10 % Continuous current Ia β€ 200 mA No load current β€ 10 mA Ambient operating temperature β30 Β°C ... +75 Β°C Housing material Brass, nickel-plated Sensing face material Plastic, PA 66 Housing length 65 mm Thread length 48 mm Tightening torque, max. β€ 12 Nm
