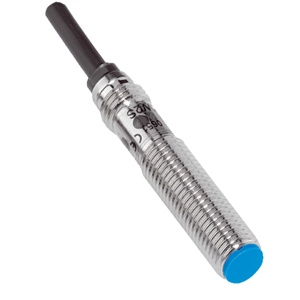

Home Sick Proximity Sensor IME08-1B5PSZUDKS60 Sick IME08-1B5PSZUDKS60 Proximity Sensor The Sick IME08-1B5PSZUDKS60 Proximity Sensor offers a M8 x 1 , 1.215 mm sensing range, 4,000 Hz installation type, NO DC 3-wire output, and PNP connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMG Series.
Brand Sick Product Type Proximity Sensor Model Number IME08-1B5PSZUDKS60
Sick IME08-1B5PSZUDKS60 Proximity Sensor – Technical Specifications Specification Value Housing Metric; Short-body Thread size M8 x 1 Diameter Ø 8 mm Sensing range Sn 1.5 mm Safe sensing range Sa 1.215 mm Installation type Flush Switching frequency 4,000 Hz Connection type Cable with connector M8, 3-pin, 0.4 m Switching output PNP Output function NO Electrical wiring DC 3-wire Supply voltage 10 V DC ... 30 V DC Enclosure rating IP65 1) Ripple ≤ 10 % Voltage drop ≤ 3 V 1) Time delay before availability ≤ 100 ms Hysteresis 5 % ... 15 % Reproducibility ≤ 2 % 2) 3) Temperature drift (of Sr) ± 10 % Continuous current Ia ≤ 200 mA No load current ≤ 10 mA Ambient operating temperature –25 °C ... +75 °C Housing material Brass, nickel-plated Sensing face material Plastic, PA 66 Housing length 38 mm Thread length 32 mm Tightening torque, max. ≤ 5 Nm Cable material PUR Conductor size 0.25 mm² Cable diameter Ø 3.7 mm
