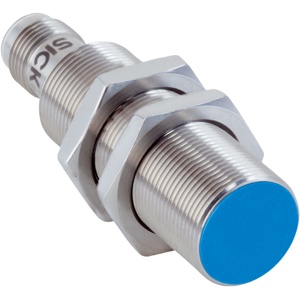

Home Sick Proximity Sensor IMS18-08BPSNC0S Sick IMS18-08BPSNC0S Proximity Sensor The Sick IMS18-08BPSNC0S Proximity Sensor offers a Metric; Standard design , 8 mm sensing range, Quasi-flush 1) installation type, PNP NO output, and Male connector M12, 4-pin 2) connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMS/IMP Series.
Brand Sick Product Type Proximity Sensor Model Number IMS18-08BPSNC0S
Sick IMS18-08BPSNC0S Proximity Sensor β Technical Specifications Specification Value Housing Metric; Standard design Thread size M18 x 1 Diameter Γ 18 mm Sensing range Sn 8 mm Safe sensing range Sa 6.48 mm Installation type Quasi-flush 1) Switching frequency 1,000 Hz Connection type Male connector M12, 4-pin 2) Switching output PNP Output function NO Electrical wiring DC 3-wire Supply voltage 7.2 V DC ... 60 V DC Ripple β€ 10 % Voltage drop β€ 2.5 V 1) Time delay before availability 100 ms Hysteresis 3 % ... 20 % Reproducibility β€ 2 % 2) Temperature drift (of Sr) Β± 10 % Continuous current Ia β€ 200 mA 3) No load current β€ 10 mA Ambient operating temperature β40 Β°C ... +100 Β°C Housing material Stainless steel V4A, DIN 1.4404 / AISI 316L Sensing face material Plastic, LCP Housing length 69 mm Thread length 51 mm Tightening torque, max. Typ. 60 Nm Protection class III
