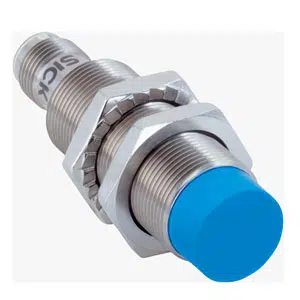

IMB18-12NPSVC0S: 1070173 - Sick 9.72 mm Inductive Sensor
Technical Specifications of Sick 9.72 mm Inductive Sensor IMB18-12NPSVC0S 1070173:
| Brand | Sick |
| Product Type | Proximity Sensor |
| Product | IMB18-12NPSVC0S |
Sick 9.72 mm Inductive Sensor IMB18-12NPSVC0S, 1070173 Technical Specifications:
| Specification | Value |
|---|---|
| Housing | Cylindrical thread design, Standard design |
| Thread size | M18 x 1 |
| Diameter | Γ 18 mm |
| Sensing range Sn | 12 mm |
| Safe sensing range Sa | 9.72 mm |
| Installation type | Non-flush |
| Switching frequency | 1,000 Hz |
| Connection type | Male connector M12, 4-pin 1) |
| Switching output | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 2), IP69K 3) |
| Special features | Resistant against coolant lubricants, Visual adjustment indicator, IO-Link, Temperature resistance |
| Special applications | Zones with coolants and lubricants, Mobile machines, Difficult application conditions |
| Items supplied | Mounting nut, V2A stainless steel, with locking teeth (2x) |
The IMB18-12NPSVC0S from Sick features a robust M18 x 1 cylindrical thread housing with an Γ 18 mm diameter, offering excellent mechanical stability even in challenging mounting conditions. Designed for non-flush installation, it delivers an extended sensing range of 12 mm with a safe margin of 9.72 mm, ensuring accurate performance even in variable environments. It uses PNP Normally Open (NO) output and connects via a standard M12 4-pin male connector, with DC 3-wire electrical wiring to simplify system integration.
This Inductive Sensor operates at a switching frequency of 1,000 Hz, making it suitable for rapid on/off detection in automated conveyor systems, rotating parts, and cam position monitoring. It is engineered for maximum protection with an IP68 and IP69K enclosure rating, offering complete resistance against water, dust, and high-pressure washdowns β ideal for use in coolant-lubricated zones, mobile equipment, and automated machinery that undergo frequent cleaning. The unit is also temperature-resistant and features a visual alignment indicator and IO-Link communication for remote configuration and real-time diagnostics, supporting advanced Industry 4.0 use cases.
Every unit comes with V2A stainless steel mounting nuts for secure installation, and is backed by Sickβs engineering excellence and global support network. Whether you're upgrading existing sensors or specifying a new automation cell, the IMB18-12NPSVC0S delivers accuracy, durability, and smart connectivity that helps future-proof your operations.
