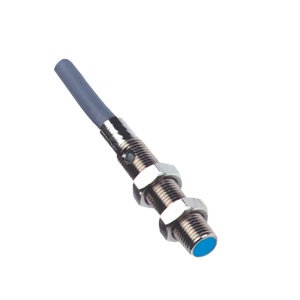

Home Sick Proximity Sensor IM05-1B5PSVR8S Sick IM05-1B5PSVR8S Proximity Sensor The Sick IM05-1B5PSVR8S Proximity Sensor offers a Metric; Standard design , 1.5 mm sensing range, Flush installation type, PNP NO output, and Cable with connector M8, 3-pin, with knurled nuts, 0.2 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IM Series.
Brand Sick Product Type Proximity Sensor Model Number IM05-1B5PSVR8S
Sick IM05-1B5PSVR8S Proximity Sensor – Technical Specifications Specification Value Housing Metric; Standard design Thread size M5 x 0.5 Diameter Ø 5 mm Sensing range Sn 1.5 mm Safe sensing range Sa 1.215 mm Installation type Flush Switching frequency 3,000 Hz Connection type Cable with connector M8, 3-pin, with knurled nuts, 0.2 m Switching output PNP Output function NO Electrical wiring DC 3-wire Supply voltage 10 V DC ... 30 V DC Enclosure rating IP67 1) Ripple ≤ 20 % 1) Voltage drop ≤ 2 V 2) Time delay before availability ≤ 10 ms Hysteresis 1 % ... 10 % Reproducibility ≤ 2 % 3) Temperature drift (of Sr) ≤ 10 % Ambient operating temperature –25 °C ... +70 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, POM Housing length 25 mm Thread length 20 mm Tightening torque, max. ≤ 1.8 Nm Cable material PUR Cable diameter Ø 2.5 mm
