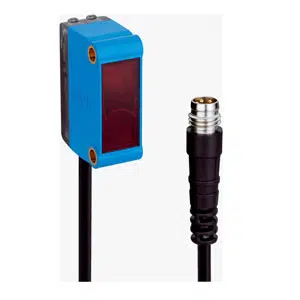

Sick GL6-P0111S112 Photoelectric Sensor
The Sick GL6-P0111S112 photoelectric sensor is a dual-lens retro-reflective sensor with 5 m sensing range for industrial automation use. This Sick photoelectric sensor from the G6 series uses PinPoint LED with 650 nm visible red light, operates on PNP output, supports 10–30 V DC supply, features light or dark switching, IP67 enclosure, and an M8 3-pin cable connection.
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Model Number | GL6-P0111S112 |
Sick GL6-P0111S112 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Dual lens |
| Sensing range max. | ≤ 6 m |
| Sensing range | ≤ 5 m |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Ø 8 mm (350 mm) |
| Wave length | 650 nm |
| Adjustment | None |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage PNP HIGH/LOW | Approx. VS / ≤ 3 V |
| Output current Imax. | ≤ 100 mA 4) |
| Response time | ≤ 625 µs |
| Switching frequency | 1,000 Hz 6) |
| Housing | Rectangular |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Cable with connector M8, 3-pin |
| Housing material | Plastic, ABS/PC |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Weight | 25 g |
The GL6-P0111S112 Sick 5m Dual Lens Photo Sensor is a retro-reflective photoelectric sensor designed for stable object detection in industrial automation systems. It provides 5 m sensing range, dual-lens retro-reflective optics, PNP digital output, and 650 nm PinPoint LED light for consistent signal behavior. This model belongs to the Sick G6 series and is used where controlled optical detection and electrical stability are required.
The GL6-P0111S112 Sick 5m Dual Lens Photo Sensor is applied in conveyors, packaging equipment, automated assembly lines, and material handling systems. Its retro-reflective operating principle supports reliable detection in compact machine layouts. Selectable light or dark switching enables predictable output logic, while the rectangular IP67 housing supports operation in dust-prone and industrial environments.
The Sick GL6-P0111S112 photoelectric sensor delivers dependable sensing performance with defined optical and electrical characteristics. With IP67 enclosure, standardized housing dimensions, and controlled response time, it integrates reliably into industrial automation systems. As part of the Sick G6 photoelectric sensor family, this model is suitable for long-term industrial use where stable detection and consistent PNP output behavior are required.
