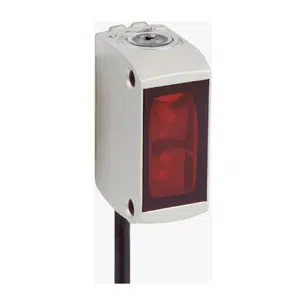

Sick GL6-F2411V Photoelectric Sensor
Sick GL6-F2411V photoelectric sensor provides 6 m sensing range, PNP output, 1000 Hz switching frequency, and PinPoint LED light source. The GL6-F2411V, a Sick PNP Rectangular Retro-reflective Sensor, uses dual lens retro-reflective principle, Ø 8 mm light spot, and ≤ 625 µs response time. It includes potentiometer adjustment, IP67/IP69K protection, stainless steel housing, and operates on 10–30 V DC supply within Sick, Sick Photoelectric Sensors, and the G6 series.
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Model Number | GL6-F2411V |
Sick GL6-F2411V Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Dual lens |
| Sensing range max. | 0.03 m ... 6 m |
| Sensing range | 0.07 m ... 5 m |
| Light source | PinPoint LED |
| Type of light | Visible red light |
| Light spot size (distance) | Ø 8 mm (350 mm) |
| Wave length | 650 nm |
| Adjustment | Potentiometer, 270° |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA 3) |
| Protection class | III |
| Digital Output type | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | - |
| Signal voltage PNP HIGH/LOW | VS - (≤ 3 V) / approx. 0 V |
| Output current Imax. | ≤ 100 mA 4) |
| Response time | ≤ 625 µs |
| Switching frequency | 1,000 Hz 6) |
| Housing | Rectangular |
| Dimensions (W x H x D) | 15 mm x 44 mm x 22 mm |
| Connection | Cable, 4-wire, 2 m |
| Housing material | Stainless steel, Stainless steel V4A (1.4404, 316L) |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP67, IP69K |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient temperature, storage | –30 °C ... +75 °C |
| Weight | 70 g |
The GL6-F2411V Sick PNP Rectangular Retro-reflective Sensor is a photoelectric sensor used for object detection in industrial automation environments. It offers 6 m sensing range, PNP output, and operates with a PinPoint LED light source at 1000 Hz switching frequency. As part of the G6 series, the GL6-F2411V ensures stable detection using dual lens optics.
The GL6-F2411V is applied in conveyors, packaging systems, and assembly lines where consistent detection is required. Its retro-reflective sensing principle enables reliable operation with reflectors. The stainless steel housing and cable connection support usage in demanding industrial conditions.
The Sick GL6-F2411V Photoelectric Sensor ensures consistent sensing performance under industrial environments. The GL6-F2411V within the G6 series supports stable detection and switching behavior. As part of the Sick sensor portfolio, it is suitable for applications requiring durable construction, enclosure protection, and reliable output.
