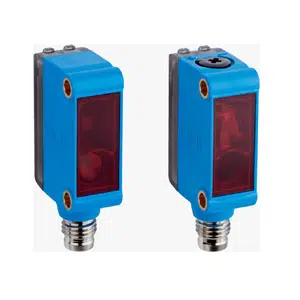

Sick GSE6L-N4211 Photoelectric Sensor
Sick GSE6L-N4211 photoelectric sensor delivers 40 m sensing range, NPN output, 1000 Hz switching frequency, and laser light source. The GSE6L-N4211, a Sick 40m Through-beam Sensor, features visible red laser light, Ø 3.5 mm light spot, and ≤ 625 µs response time. It includes potentiometer adjustment, IP67 enclosure rating, M8 connector interface, and operates on 10–30 V DC supply within Sick, Sick Photoelectric Sensors, and the G6 series.
| Brand | Sick |
| Product Type | Photoelectric Sensors |
| Model Number | GSE6L-N4211 |
Sick GSE6L-N4211 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Through-beam photoelectric sensor |
| Functional principle detail | - |
| Sensing range max. | 40 m |
| Sensing range | - |
| Light source | Laser |
| Type of light | Visible red light |
| Light spot size (distance) | Ø 3.5 mm (1,000 mm) |
| Wave length | 680 nm |
| Adjustment | Potentiometer, Operating mode switch |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | ≤ 20 mA, without load. At UB = 24 V |
| Protection class | III |
| Digital Output type | NPN |
| Switching mode | - |
| Switching mode selector | - |
| Signal voltage PNP HIGH/LOW | Approx. UB-3 V / 0 V |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 625 µs |
| Switching frequency | 1,000 Hz 3) |
| Housing | Rectangular |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Connection | Male connector M8, 4-pin |
| Housing material | Plastic, ABS/PC |
| Front screen material | Plastic, PMMA |
| Enclosure rating | IP67 (EN 60529) |
| Ambient operating temperature | –20 °C ... +50 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Weight | Approx. 60 g |
The GSE6L-N4211 Sick 40m Through-beam Sensor is a photoelectric sensor designed for long-distance object detection in industrial automation systems. It provides 40 m sensing range, NPN output, and uses a laser light source with 1000 Hz switching frequency. As part of the G6 series, the GSE6L-N4211 ensures stable detection across extended distances.
The GSE6L-N4211 is used in conveyors, material handling systems, and large automation setups where long-range detection is required. Its through-beam sensing method enables accurate detection even in challenging environments. The compact rectangular housing and M8 connector allow easy integration into control systems.
The Sick GSE6L-N4211 Photoelectric Sensor ensures consistent performance in industrial conditions. The GSE6L-N4211 within the G6 series supports reliable long-distance sensing and stable output behavior. As part of the Sick sensor range, it is suitable for applications requiring extended sensing range, enclosure protection, and dependable operation.
