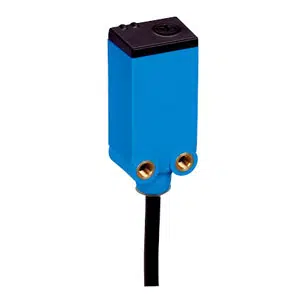

Sick CQ4-08ENOKU1 Capacitive Sensor
The CQ4-08ENOKU1 is a Sick DC 3-wire Capacitive Sensor with 1β8 mm sensing range and NC output. Manufactured by Sick, this Sick Capacitive Proximity Sensor belongs to the CQ4 series and features a 1β8 mm sensing range, 100 Hz switching frequency, DC 3-wire NPN NC output, IP67 enclosure rating, rectangular housing (16 mm x 39.5 mm x 12 mm), flush or non-flush installation, 2 m cable connection, and 5-turn potentiometer sensitivity adjustment with supplied screwdriver.
| Brand | Sick |
| Product Type | Capacitive Proximity Sensor |
| Product | CQ4-08ENOKU1 |
Sick CQ4-08ENOKU1 Capacitive Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Housing | Rectangular |
| Dimensions (W x H x D) | 16 mm x 39.5 mm x 12 mm |
| Sensing range Sn | 1 mm ... 8 mm 1), 1 mm ... 6 mm 2) |
| Safe sensing range Sa | 5.76 mm |
| Installation type | Non-flush, Flush |
| Switching frequency | 100 Hz |
| Connection type | 2m Cable |
| Switching output | NPN |
| Output function | NC |
| Electrical wiring | DC 3-wire |
| Adjustment | Potentiometer, 5 turns (Sensitivity) |
| Enclosure rating | IP67 4) |
| Items supplied | Screwdriver for potentiometer adjustment (1 x) |
The CQ4-08ENOKU1 Sick DC 3-wire Capacitive Sensor is part of the CQ4 series used in industrial automation systems. This model offers a 1β8 mm sensing range with a safe sensing range of 5.76 mm and operates at a 100 Hz switching frequency. It uses a DC 3-wire NPN normally closed output configuration. The CQ4-08ENOKU1 from Sick supports defined detection tasks in machine control applications.
In factory automation, the CQ4-08ENOKU1 is used in conveyors, packaging lines, assembly units, and material handling systems. Its compact rectangular housing supports both flush and non-flush mounting. The 5-turn potentiometer enables precise sensitivity adjustment for different materials. With IP67 protection and a 2 m cable connection, it performs reliably in environments exposed to dust and moisture.
The CQ4-08ENOKU1 Sick DC 3-wire Capacitive Sensor strengthens the Sick capacitive sensing portfolio within the CQ4 series. With specified sensing distance, DC 3-wire wiring, and IP67 enclosure rating, it meets common industrial automation requirements in India. This model supports stable detection, structured wiring, and consistent switching performance for integration into machine systems.
