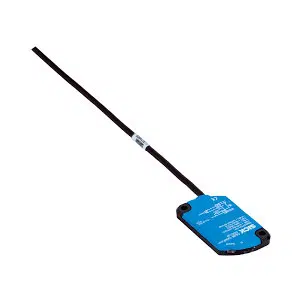

Sick CQ28-10NPP-KW1 Capacitive Sensor
The CQ28-10NPP-KW1 is a Sick PNP NO NC Sensor with 1–10 mm sensing range and DC wiring. Manufactured by Sick, this Sick Capacitive Proximity Sensor belongs to the CQ4 series and features a 1–10 mm sensing range, 10 Hz switching frequency, DC 4-wire PNP output, IP68 enclosure rating, rectangular housing (28 mm x 46 mm x 5.5 mm), non-flush installation, 2 m cable connection, NC or NO output function, and single teach-in button sensitivity adjustment.
| Brand | Sick |
| Product Type | Capacitive Proximity Sensor |
| Product | CQ28-10NPP-KW1 |
Sick CQ28-10NPP-KW1 Capacitive Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Housing | Rectangular |
| Dimensions (W x H x D) | 28 mm x 46 mm x 5.5 mm |
| Sensing range Sn | 1 mm ... 10 mm |
| Safe sensing range Sa | 7.2 mm |
| Installation type | Non-flush |
| Switching frequency | 10 Hz |
| Connection type | 2m Cable |
| Switching output | PNP |
| Output function | NC or NO |
| Electrical wiring | DC 4-wire |
| Adjustment | Single teach-in button (Sensitivity) Cable (Sensitivity) |
| Enclosure rating | IP68 2) |
| Items supplied | - |
The CQ28-10NPP-KW1 Sick PNP NO NC Sensor is part of the CQ4 series used in industrial automation applications. This model offers a 1–10 mm sensing range with a safe sensing range of 7.2 mm and operates at a 10 Hz switching frequency. It uses a DC 4-wire PNP output configuration and supports both NC and NO output functions. The CQ28-10NPP-KW1 from Sick is designed for defined object detection tasks.
In automation systems, the CQ28-10NPP-KW1 is applied in conveyors, packaging lines, assembly stations, and material handling equipment. Its slim rectangular housing supports non-flush installation in compact spaces. The single teach-in button allows precise sensitivity adjustment for different materials. With IP68 protection and a 2 m cable connection, it operates reliably in environments exposed to dust and moisture.
The CQ28-10NPP-KW1 Sick PNP NO NC Sensor strengthens Sick’s CQ4 capacitive sensing portfolio within industrial automation. With specified sensing distance, DC 4-wire wiring, and IP68 enclosure rating, it fits standard machine integration requirements in India. This model supports stable detection, structured wiring, and consistent switching performance for machine control applications.
