Selec Analog Panel Meter | Frequency & Analog Ammeter
Selec analog panel meters are electromechanical instruments used to indicate electrical quantities through pointer deflection in panels assemblies systems. They operate using moving-coil or moving-iron mechanisms with calibrated scales to display parameters such as voltage, current, frequency, or power from direct inputs or via current and potential transformers during steady-state operation. Selection depends on measured quantity, scale range, accuracy class, operating frequency, damping method, mounting dimensions, insulation rating, and compatibility with transformer ratios and panel cutouts specified by electrical standards. Selec analog panel meters are electromechanical indicating devices, panel-mounted, classified by measurement function and movement type, interfacing through direct electrical connections or CT/PT secondary circuits to provide visual indication within standardized industrial power distribution and control architectures.

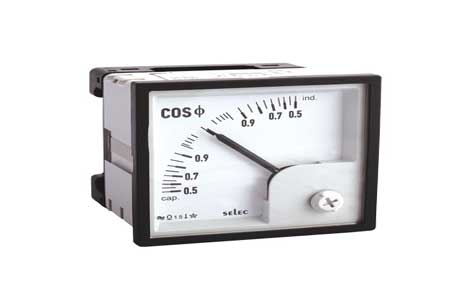

Selec Analog Panel Meter: Power Factor
72x72mm (AM-PF-2): Single Phase Analog power factor meter, auxiliary supply 440V & 415V.
96x96mm (AM-PF-3): Single Phase Analog power factor meter, auxiliary supply 440V & 415V.
Accuracy and Certification: Both models are CE certified, ensuring compliance with quality and safety standards.
Panel Sizes: Available in front panel sizes of 72x72mm and 96x96mm to suit various installation needs.
Input Voltage Options: Designed to handle input voltages of 440V and 415V.
Application: Ideal for measuring the power factor in single-phase electrical systems.

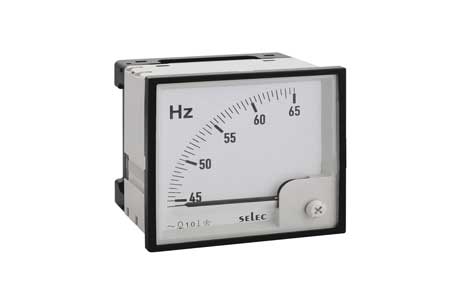

Selec Frequency Meter: Analog Meters
96×96 mm (AM-Hz-3): Single Phase Analog frequency meter, auxiliary supply options of 110V, 220V, and 440V.
72×72 mm (AM-Hz-2): Single Phase Analog frequency meter, auxiliary supply options of 110V, 220V, and 440V.
Certifications: Both models are CE certified, ensuring compliance with safety and quality standards.
Display Sizes: Available in front panel sizes of 96×96 mm and 72×72 mm, suitable for various panel configurations.
Input Voltage Options: Designed to handle input voltages of 440V and 220V.
Application: Ideal for measuring the frequency of electrical currents in single-phase systems.

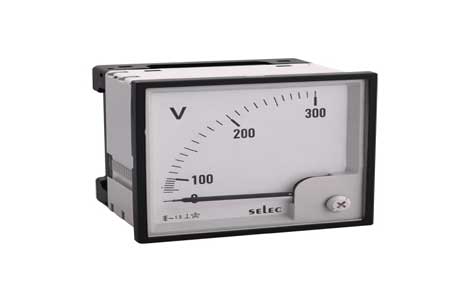

Selec Volt Meter
Available Sizes: Offered in front panel sizes of 48mm, 60mm, 72mm, and 96mm.
Input Voltage Ranges: Capable of measuring voltages at 300V, 500V, 600V, 700V, 750V, and 800V.
Accuracy Classes: Available in Class 1 and Class 1.5 for precise voltage measurement.
Mechanism Types: Includes both moving coil and moving iron types for different accuracy and application needs.
Certifications: All models are CE certified, ensuring compliance with industry standards.
Design Options:
72x72mm Analog Voltmeter (AM-V-2): True RMS, Single Phase, can measure 300V or 500V.
96x96mm Analog Voltmeter (AM-V-3): True RMS, Single Phase, also measures 300V or 500V.

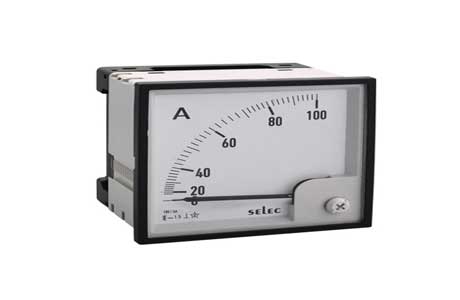

Selec Analog Ammeter
Panel Sizes: Available in various sizes including 72x72mm, 96x96mm, and other compact dimensions like 63x63mm.
Current Type Compatibility: Designed to measure both AC and DC currents.
Measurement Mechanism: Utilizes moving iron and moving coil mechanisms for accurate current measurement.
Accuracy Classes: Includes meters with precision classes designed for industrial use.
Specific Models:
72x72mm Analog Ammeter (AM-I-2): True RMS, single-phase, suitable for general applications.
96x96mm Analog Ammeter (AM-I-3): True RMS, single-phase, for larger panel displays.
Direct Type Analog Ammeter, 72x72mm (AM-I-D-2): Measures up to 100A directly, suitable for direct current monitoring.
Direct Type Analog Ammeter, 96x96mm (AM-I-D-3): Also measures up to 100A directly, for direct high current applications.
β Verifiedπ Trusted Vendor
Deals in South India
Dealing Panel Meter Brands: Selec, Autonics
IndMALL Automation showcases the Selec Analog Panel Meters, tailored for diverse industrial measurements. These meters are designed in two sizes, ensuring they fit various application needs. They include frequency meters measuring from 45 to 65Hz, power factor meters capable of handling 415V and 440V, voltmeters measuring up to 500V, and ammeters that can monitor current up to 4000A. Perfect for rigorous industrial environments, these analog meters provide precision and reliability with options for direct current measurement up to 100A. Selec’s meters are essential tools for accurate monitoring and management of electrical parameters, supporting effective power management strategies in numerous settings.
What is analog panel meter?
An analog panel meter is a device that measures electrical parameters such as voltage, current, or resistance. It displays readings using a moving needle or pointer on a dial, providing visual insights into the electrical measurements. These meters are commonly used in various applications for monitoring and diagnostic purposes in electrical panels.
What is the range of the analog ammeter?
The range of an analog ammeter indicates its maximum current reading capacity. For instance, an ammeter with a dial marked from 0 to 300 can measure currents up to 300 amps. This range defines the upper limit of current that the ammeter can accurately measure without risk of damage or error.
What size is a standard panel meter?
The size of a standard panel meter typically adheres to DIN (Deutsche Industrie Norm) specifications. Common sizes include 48 mm Γ 24 mm for smaller meters and 48 mm Γ 96 mm for larger, standard DIN-size meters such as DC voltmeters. These dimensions ensure compatibility with equipment racks and enclosures.
Find the right Selec Analog Panel Meter for your industry needs at IndMALL.
