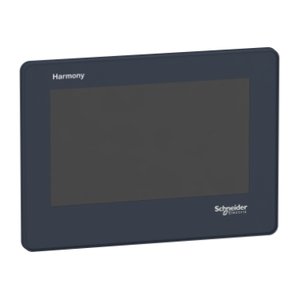

HMISTO735 - Schneider HMI 4.3
HMISTO735 Schneider HMI 4.3
| Spec | Value |
|---|---|
| Brand | Schneider |
| Product Type | HMI(Human Machine Interface) |
| Product | HMISTO735 |
HMISTO735 Schneider HMI 4.3 Technical Specifications:
| Specification | Value |
|---|---|
| Display Resolution | 480 x 272 pixels |
| Realtime clock | With RTC-battery set optional |
| NEMA degree of protection | NEMA 4X/13 front panel indoor use) |
| Depth | - |
| Display size | 4.3 inch |
| Resistance to electromagnetic fields | - |
| Display colour | 65536 colours |
| Width | - |
| Cut-out dimensions | 77.5 x 112.5 mm66 x 105 mm with mounting adaptor |
| Enclosure Material | PPT |
| Processor frequency | - |
| Power Consumption in W | 8.1 W |
| [Us] rated supply voltage | 12...24 V DC - 10...20 % |
| Electromagnetic compatibility | Resistance to radiated electromagnetic fields - test level: 10 V/m (80 MHz...2.7 GHz)Resistance to electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to EN 61000-4-2Resistance to electrostatic discharge - test level: 6 kV level 3 (direct contact) conforming to EN 61000-4-2 |
| Relative humidity | 10…90 % without condensation |
| Height | - |
| IP degree of protection | IP65f front panel)IP20 rear panel) |
| Net Weight | 0.49 lb(US) (0.22 kg) |
| Range of Product | Harmony STO & STU |
| Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| Inrush current | - |
| Integrated connection type | 1 USB 2.0 type mini B1 USB 2.0 type A1 Ethernet TCP/IP - RJ45 |
| Display Type | Colour TFT LCD |
| Operating System | Harmony |
| Touch panel | Analogue |
| Memory description | Back up of data 512 KBApplication memory 26 MB |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
| Vibration resistance | 1 gn 5…150 Hz) IEC 61131-23.5 mm constant amplitude 5…150 Hz) IEC 61131-2 |
| Brightness | 16 levels via touch panel |
| Product or Component Type | Touch panel screen |
| Operating altitude | 6561.68 ft (2000 m) |
| Shock resistance | 15 gn 11 msIEC 61131-2 |
| Supply | External source |
🛠️ Get Quotes Instantly from Schneider Vendors
Shree Hari Engineers
✔ Verified🌟 Trusted Vendor
M.K Electricals
✔ Verified🌟 Trusted Vendor
Jeysan Electronics
✔ Verified🌟 Trusted Vendor
The Schneider HMISTO735 is a compact, high-performance HMI panel designed to meet the demands of industrial automation systems. Featuring a 4.3" TFT LCD display with a resolution of 480 x 272 pixels and 65536 colors, the HMISTO735 provides clear, high-quality visuals, making it ideal for real-time process monitoring and control. The PROFINET interface and Ethernet TCP/IP connectivity offer seamless integration with existing automation systems, ensuring efficient communication and data transfer between devices.
With a power consumption of just 8.1 W and a rated supply voltage of 12...24 V DC, the Schneider HMISTO735 is energy-efficient while delivering exceptional performance. It is equipped with 26 MB of application memory and a 512 KB backup memory to ensure smooth operation and data retention during power interruptions. This HMI is designed to operate efficiently in a range of environmental conditions, with an operating temperature range of 0°C to 50°C and a storage temperature range of -20°C to 60°C.
The Schneider HMISTO735 is also designed to withstand harsh conditions with shock resistance of up to 15 gn (11 ms) and vibration resistance of 1 gn (5–150 Hz). It operates at altitudes up to 2000 m, ensuring reliable performance in various industrial settings. The Harmony operating system enables seamless operation and integration, offering high reliability and ease of use for operators and engineers alike.
IndMALL Automation offers the Schneider HMISTO735 at competitive prices, providing excellent support and service. Our team is ready to assist you with tailored quotes and ensure the best value for your industrial automation needs. Request your quote today and experience seamless integration, high performance, and exceptional reliability with the Schneider HMISTO735 HMI panel. For full specifications and more details, visit the official product page: Schneider HMISTO735.
