Schneider HMI: Electric Magelis & Harmony HMI Solutions
Are you looking for Schneider HMI? IndMALL Automation offers Schneider HMI at an economical price compared to Schneider Electric Dealers or Distributors. Schneider Electric’s range includes Harmony ST6, STO, Magelis STO, STU, GTO, and XBT series. These advanced HMIs are perfect for diverse industrial needs. They offer high functionality at competitive prices in Bangalore, Pondicherry, Coimbatore, Chennai, Hyderabad, and across India.
Schneider HMIs are known for their reliability, user-friendly interfaces, and adaptability in various applications. Ideal for enhancing operational efficiency, they provide clear visuals and robust performance. Choose IndMALL Automation for affordable and quality Schneider Electric HMI solutions.
Schneider HMI: GTO Series
- High-Resolution TFT Display: 65K colors for enhanced monitoring and user experience.
- Energy Saving: LED backlight with complete dimming functionality.
- Connectivity: Embedded Ethernet, 2 Serial lines, USB 2.0, SD cards.
- Easy Installation: Same cut-out as Magelis XBTGT range, connectors for easier cabling.
- Adaptability: Operates up to 55°C, with worldwide certifications including hazardous locations and marine applications.
- Environmental Protection: Covers available against chemical and oil substances.

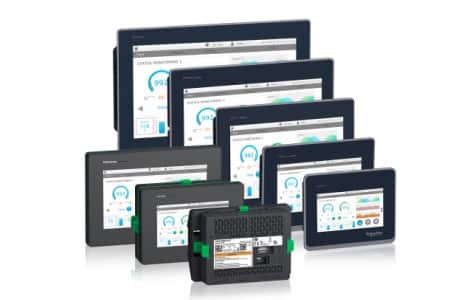

Schneider Touch Panel: ST6 Series
- High-Resolution Display: For clear and detailed visuals.
- Cost-Efficient: Designed to be budget-friendly while maintaining quality.
- Basic HMI: Ideal for simple human-machine interface applications.

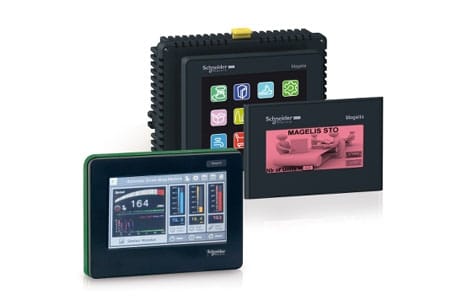

Schneider Electric Magelis STO & STU Series
- Power Supply: 24 VDC.
- Communication Ports: Serial ports RJ45 RS485/232 multiprotocol, Mini-USB port.
- Magelis STO: Touch screen 3.4’’, 200 x 80 pixels, available in 3 color versions.
- Magelis STU: High definition color screen TFT QVGA 3.5’’, Ethernet port RJ45 10/100 Base T.
- Mounting: Tool-free with Magelis Spring Clips (STO) and push button system (STU).
- Software Configuration: Unique software for enhanced productivity.
Schneider Electric Harmony HMI: ET6 Series
- Screen Sizes: Available in 7″, 10″, 12″, and 15″ widescreen options.
- High-Resolution Display: Refined screen with 16M colors.
- Communication Ports: Two serial ports (RS232/RS422/RS485) and one Ethernet port.
- USB Ports: One USB Type A for storage and one Micro-B USB for data transfer.
- Software Compatibility: Configured by Vijeo Designer Basic V1.2 or above.
- Applications: Suitable for OEMs in packaging, HVAC, electronics, textiles, and more.
Schneider Harmony HMI: GXU Series
- Compact Touch Screen Panels: Essential for industrial use.
- Intuitive Configuration: With Vijeo Designer Basic software.
- Easy Installation: Anti-drop hooks and screw fasteners.
- Robust Design: Suitable for harsh environments.
- Diverse Applications: Ideal for textile, packaging, HVAC, and various industrial sectors.

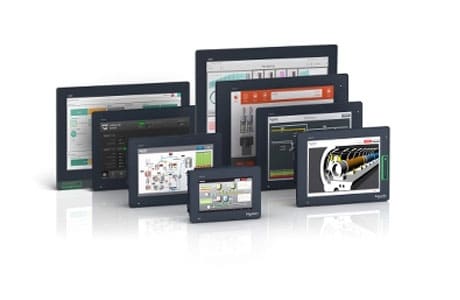

Schneider Magelis HMI: GTU Series
- Combination Design: CPU box with customizable display options.
- Touchscreen Interface: Resistive multitouch screen.
- Display Options: 4/3 and 16/9 formats with multi-display capability.
- Connectivity: Dual serial and Ethernet ports, front USB with IP66/IP67 protection.
- Remote Access: Via mobile apps and Web Gate function.
- Robust and Easy Installation: Designed for reduced maintenance and simple setup.

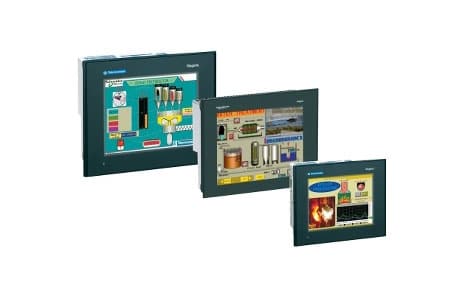

Schneider Electric HMI: XBT GT Series
- High Visibility Screens: TFT, STN, or monochrome options.
- Touch Pad: Accurate analog control.
- Customizable Display: Adjustable contrast and brightness.
- Multi-Windows: Enhanced user interface.
- Font Support: Up to 40 types.
- Connectivity: USB ports, Compact Flash support.
- Remote Access: Visualization via internet browser.
Product List:
| Model No | Image | Display Size | Display Type | Display Resolution | Touch Panel |
|---|---|---|---|---|---|
| HMIGTO6310 |  |
12.1 inch | Backlit colour TFT LCD | 800 x 600 pixels SVGA | Resistive film, 1000000 cycles |
| HMISTU855 |  |
5.7 inch | QVGA TFT colour touchscreen | 320 x 240 pixels QVGA | Analogue |
| HMISTU655W |  |
3.5 inch | QVGA TFT colour touchscreen | 320 x 240 pixels QVGA | Analogue |
| HMIST6200 |  |
4 inch | Colour TFT LCD | 480 x 272 pixels | Single touch analogue resistive |

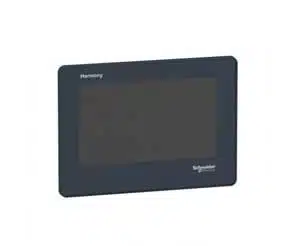

| HMISTO705 |  |
4.3 inch | Colour TFT LCD | 480 x 272 pixels | Analogue |
Frequently Asked Questions
Which Software is used for Schneider HMI?
Schneider HMI programming primarily utilizes Vijeo Designer software for configuring its complete range of HMI devices. For more complex and data-intensive visualizations, particularly with Harmony iPC (formerly Magelis iPC), EcoStruxure Machine SCADA Expert is the recommended tool.
Vijeo Designer allows classic configuration, while EcoStruxure Machine SCADA Expert caters to advanced needs in industrial visualization and data management.
What Size is the Standard HMI?
The standard size of an HMI (Human-Machine Interface) varies, but common sizes range from 4 to 15 inches. The choice depends on the application’s complexity and user interface requirements. Smaller HMIs (4-7 inches) are used for basic control tasks, while larger screens (10-15 inches) are for more complex operations with detailed visualizations.
Is HMI a SCADA?
No, HMI (Human-Machine Interface) is not the same as SCADA (Supervisory Control and Data Acquisition). HMI is a user interface that allows interaction with a machine or system, typically providing localized control and monitoring.
SCADA, on the other hand, is a system used for remote monitoring and control of large-scale processes across various industrial environments.
What is Vijeo Designer Runtime?
Vijeo Designer Runtime is software used for running applications created in Vijeo Designer, Schneider Electric’s HMI configuration software. It enables the execution of HMI applications on compatible Schneider Electric terminals or industrial PCs.
This runtime environment allows users to interact with the control processes visualized on the HMI screens, as designed in the Vijeo Designer development tool.
Choose IndMALL for Schneider HMI and connect with us today.
