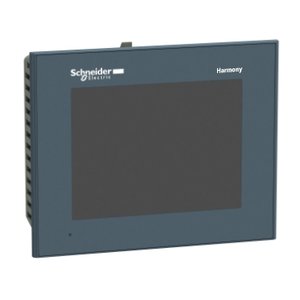

Schneider HMIGTO2300 Human Machine interface
The Schneider Electric HMIGTO2300 is a 5.7-inch touchscreen display from the Harmony GTO range, designed for industrial automation. This HMI panel offers precise control and monitoring for machinery, perfect for environments that require durable and efficient operator interfaces, including factory floors and process control systems.
| Brand | Schneider |
| Product Type | Human Machine Interface (HMI) |
| Model Number | HMIGTO2300 |
Schneider HMIGTO2300 Human Machine interface – Technical Specifications
| Specification | Value |
|---|---|
| Downloadable Protocols | Schneider Electric Modicon ModbusSchneider Electric Modicon Uni-TESchneider Electric Modicon Modbus PlusSchneider Electric Modicon FIPWAYMitsubishi Melsec third party protocolsOmron Sysmac third party protocolsRockwell Automation Allen-Bradley third party protocolsSiemens Simatic third party protocols |
| Data backedup | 128 kB internal RAM SRAM) |
| Standards | IEC 61000-6-2UL 508IEC 61131-2 |
| Supply | External source |
| Backlight lifespan | 50000 hours white 77 °F (25 °C) |
| Resistance to electrostatic discharge | 6 kV contact discharge IEC 61000-4-2 level 3 |
| Range of Product | Harmony GTO |
| Maximum power consumption in W | 6.5 W when power is not supplied to external devices4.5 W when backlight is OFF5 W when backlight is dimmed10.5 W |
| Net Weight | 1.8 lb(US) (0.8 kg) |
| NEMA degree of protection | NEMA 4X front panel (indoor use) |
| Operating System | Harmony |
| Inrush current | 30 A |
| Shock resistance | 147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2 |
| Relative humidity | 10…90 % without condensation |
| Depth | 2.3 in (59.5 mm) |
| Supply voltage limits | 19.2…28.8 V |
| Operating altitude | < 6561.68 ft (2000 m) |
| Ambient air temperature for storage | -4…140 °F (-20…60 °C) |
| Width | 6.7 in (169.5 mm) |
| Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| [Us] rated supply voltage | 24 V DC |
| Height | 5.4 in (137 mm) |
| Display colour | 65536 colours |
| IP degree of protection | IP20 IEC 60529 rear panel)IP65 IEC 60529 front panel) |
| Terminal type | Touchscreen display |
| Vibration resistance | 3.5 mm 5…9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-21 gn 9…150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2 |
| Memory Description | Flash EPROM, 64 MB |
| Display Resolution | 320 x 240 pixels QVGA |
The Schneider Electric HMIGTO2300 is engineered for high performance with a backlight lifespan of up to 50,000 hours, ensuring long-term reliability. It operates at a 24 V DC rated supply voltage and offers a resolution of 320 x 240 pixels QVGA for clear visuals. With an IP65 front panel rating, it provides exceptional protection in demanding industrial environments. The HMIGTO2300 is equipped with robust features like Modbus TCP/IP and CANopen protocols, making it compatible with a wide range of automation systems.
