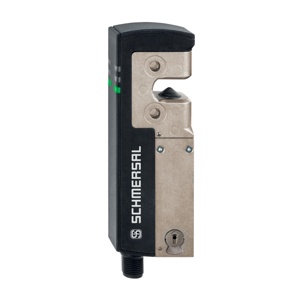

Schmersal AZM40B-ST-1P2P-PH Solenoid Interlock
The Schmersal AZM40B-ST-1P2P-PH Solenoid interlocks (Item No: 103037330) offers a 2 number of safety contacts, 2,600 N holding force Fmax, maximum, IP66, IP67, IP69 degree of protection, 32 VDC rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Solenoid interlocks category, this model belongs to the Schmersal AZM Series.
| Brand | Schmersal |
| Product Type | Solenoid Interlock |
| Model Number | AZM40B-ST-1P2P-PH |
Schmersal AZM40B-ST-1P2P-PH Solenoid Interlock – Technical Specifications
| Specification | Value |
|---|---|
| Working principle | RFID |
| Frequency band RFID | 125 kHz |
| Transmitter output RFID, maximum | -6 dB/m |
| Housing material | Light alloy die cast and plastic (glass-fibre reinforced thermoplastic) |
| Reaction time, maximum | 100 ms |
| Duration of risk, maximum | 200 ms |
| Number of safety contacts | 2 |
| PFH value | 1.10 x 10⁻⁹ /h |
| PFD value | 8.90 x 10⁻⁵ |
| Interlocking principle | bistable |
| Mechanical life, locking cycles | 1,000,000 Operations |
| Mechanical life, actuator cycles | 500,000 Operations |
| Holding force FZh in accordance with EN ISO 14119 | 2,000 N |
| Holding force Fmax, maximum | 2,600 N |
| Latching force | 40 N |
| Actuating speed, maximum | 0.5 m/s |
| Mounting | mounting holes plain |
| Type of the fixing screws | 2x M5 |
| Tightening torque of the fixing screws, minimum | 4 Nm |
| Tightening torque of the fixing screws, maximum | 6 Nm |
| Assured switching distance "ON" Sao | 1 mm |
| Assured switching distance "OFF" Sar | 8 mm |
| Length of sensor chain, maximum | 30 m |
| Termination | Connector M12, 8-pole, A-coded |
| Length of sensor | 119.5 mm |
| Width of sensor | 40 mm |
| Height of sensor | 20 mm |
| Degree of protection | IP66, IP67, IP69 |
| Ambient temperature | -20 ... +55 °C |
| Storage and transport temperature | -40 ... +85 °C |
| Relative humidity, maximum | 93 % |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Protection class | III |
| Permissible installation altitude above sea level, maximum | 2,000 m |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Operating voltage | 24 VDC -15 % / +10 % (stabilised PELV power supply) |
| Rated operating voltage | 24 VDC |
| Operating current | 1,200 mA |
| Required rated short-circuit current | 100 A |
| External wire and device fuse rating | 2 A gG |
| Time to readiness, maximum | 4,000 ms |
| Switching frequency, maximum | 0.25 Hz |
| Switching thresholds | −3 V … 5 V (Low) 15 V … 30 V (High) |
| Magnet switch-on time | 100 % |
| Current consumption at 24V, minimum | 10 mA |
| Current consumption at 24V, maximum | 15 mA |
| Current consumption at 24 V | 5 mA |
| Gross weight | 304 g |
