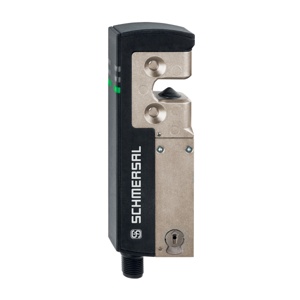

AZM40B-I1-ST-1P2P-PH: 103037331 - Schmersal RFID Solenoid Interlocks
Technical Specifications of Schmersal RFID Solenoid Interlocks AZM40B-I1-ST-1P2P-PH 103037331:
| Spec | Value |
|---|---|
| Working principle | RFID |
| PFH value | 1.10 x 10⁻⁹ /h |
| Mounting | mounting holes plain |
| Termination | Connector M12, 8-pole, A-coded |
Schmersal RFID Solenoid Interlocks AZM40B-I1-ST-1P2P-PH, 103037331 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | RFID |
| Frequency band RFID | 125 kHz |
| Transmitter output RFID, maximum | -6 dB/m |
| Housing material | Light alloy die cast and plastic (glass-fibre reinforced thermoplastic) |
| Reaction time, maximum | 100 ms |
| Duration of risk, maximum | 200 ms |
| Number of safety contacts | 2 |
| PFH value | 1.10 x 10⁻⁹ /h |
| PFD value | 8.90 x 10⁻⁵ |
| Interlocking principle | bistable |
| Mechanical life, locking cycles | 1,000,000 Operations |
| Mechanical life, actuator cycles | 500,000 Operations |
| Holding force FZh in accordance with EN ISO 14119 | 2,000 N |
| Holding force Fmax, maximum | 2,600 N |
| Latching force | 40 N |
| Actuating speed, maximum | 0.5 m/s |
| Mounting | mounting holes plain |
| Type of the fixing screws | 2x M5 |
| Tightening torque of the fixing screws, minimum | 4 Nm |
| Tightening torque of the fixing screws, maximum | 6 Nm |
| Assured switching distance "ON" Sao | 1 mm |
| Assured switching distance "OFF" Sar | 8 mm |
| Length of sensor chain, maximum | 30 m |
| Termination | Connector M12, 8-pole, A-coded |
| Length of sensor | 119.5 mm |
| Width of sensor | 40 mm |
| Height of sensor | 20 mm |
| Degree of protection | IP66 IP67 IP69 |
| Ambient temperature | -20 ... +55 °C |
| Storage and transport temperature | -40 ... +85 °C |
| Relative humidity, maximum | 93 % |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Protection class | III |
| Permissible installation altitude above sea level, maximum | 2,000 m |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Operating voltage | 24 VDC -15 % / +10 % (stabilised PELV power supply) |
| Rated operating voltage | 24 VDC |
| Operating current | 1,200 mA |
| Required rated short-circuit current | 100 A |
| External wire and device fuse rating | 2 A gG |
| Time to readiness, maximum | 4,000 ms |
| Switching frequency, maximum | 0.25 Hz |
| Switching thresholds | −3 V … 5 V (Low) 15 V … 30 V (High) |
| Magnet switch-on time | 100 % |
| Current consumption at 24V, minimum | 10 mA |
| Current consumption at 24V, maximum | 15 mA |
| Current consumption at 24 V | 5 mA |
| Gross weight | 305 g |
Get A Quote for Schmersal RFID Solenoid Interlocks AZM40B-I1-ST-1P2P-PH part no: 103037331 at the best price. Here are the brief Technical Specifications of AZM40B-I1-ST-1P2P-PH, 103037331 are Light alloy die cast and plastic (glass-fibre reinforced thermoplastic), ensuring durability. This model is engineered for high performance with a Mechanical life of 1,000,000 Operations locking cycles and 500,000 Operations actuator cycles, making it reliable for intensive industrial use. The Latching force is rated at 40 N , while the Actuating speed reaches a maximum of 0.5 m/s ensuring quick and secure operations. Designed for ease of installation, the mounting holes plain with 2x M5fixing screws. Termination is achieved through a Connector M12, 8-pole, A-coded, facilitating seamless integration. The sensor measures 119.5 mm in lengthIt's. Time to get a Quote for your requirement of Schmersal RFID Solenoid Interlocks. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
