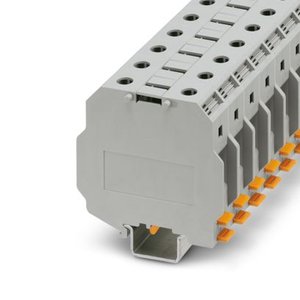

UKH 50 1500V , 3247400, Phoenix High Current Terminal Block Technical Specifications
Specification
Value
Product type
High current terminal block
Number of positions
-
Number of connections
2
Number of rows
1
Potentials
1
Overvoltage category
III
Degree of pollution
3
Rated surge voltage
8 kV
Maximum power dissipation for nominal condition
4.73 W
Number of connections per level
2
Nominal cross section
50 mmΒ²
Screw thread
M6
Tightening torque
6 ... 8 Nm
Stripping length
24 mm
Internal cylindrical gage
B10
Connection in acc. with standard
IEC 60947-7-1
Conductor cross section rigid
16 mmΒ² ... 70 mmΒ²
Nominal current
150 A
Maximum load current
150 A (with 50 mmΒ² conductor cross section)
Nominal voltage
1500 V DC
Width
20 mm
Height
70.6 mm
Depth
76 mm
Color
gray (RAL 7042)
Flammability rating according to UL 94
V0
Insulating material group
I
Insulating material
PA
Static insulating material application in cold
-60 Β°C
Relative insulation material temperature index (Elec., UL 746 B)
130 Β°C
Test voltage setpoint
3.82 kV
Open side panel
No
DIN rail/fixing support
NS 32/NS 35
Test force setpoint
-
Rotation speed
10 (+/- 2) rpm
Revolutions
135
Conductor cross section/weight
16 mmΒ² / 2.9 kg
Time of exposure
30 s
Frequency
f1 = 5 Hz to f2 = 250 Hz
ASD level
6.12 (m/sΒ²)Β²/Hz
Acceleration
5g
Test duration per axis
5 h
Test directions
X-, Y- and Z-axis (pos. and neg.)
Pulse shape
Half-sine
Shock duration
30 ms
Number of shocks per direction
3
Ambient temperature (operation)
-60 Β°C ... 110 Β°C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)
-25 Β°C ... 60 Β°C (for a short time, not exceeding 24 h, -60 Β°C to +70 Β°C)
Ambient temperature (assembly)
-5 Β°C ... 70 Β°C
Ambient temperature (actuation)
-5 Β°C ... 70 Β°C
Permissible humidity (operation)
20 % ... 90 %
