Phoenix SMPS: Trio & Quint Power Supply 24VDC
IndMALL Automation offers an extensive range of Phoenix SMPS power supplies, catering to diverse industrial requirements. Our collection includes various models of Phoenix Contact power supplies, renowned for their durability and performance. Whether you’re looking for a robust Phoenix SMPS power solution or a specific model we have you covered.
We provide competitive pricing, ensuring you find the best SMPS price list for your budget. Our Phoenix power supply range is designed to meet diverse power needs, ensuring high-quality power Phoenix solutions for every requirement. We stand behind each product with a strong commitment to quality and customer satisfaction.
Phoenix SMPS: STEP Power
Phoenix Contact STEP power supplies for building automation are:
- Type: Primary-switched units for DIN rail or direct mounting.
- Output: Options like 24 V DC / 2.5 A, 15 V DC / 4 A, and 5 V DC / 6.5 A.
- Mounting: Flexible DIN rail or surface mounting.
- Connection: Push-in connection technology for easy setup.
- USB Ports: USB-A and USB-C for powering devices and fast charging.
- Temperature Range: Operates from -10°C to +70°C.

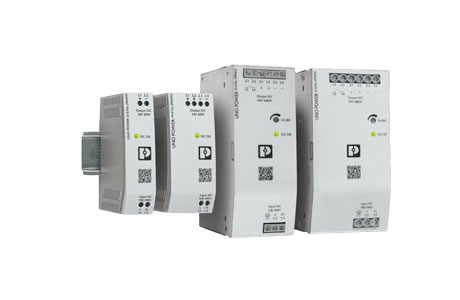

Phoenix Contact Power Supply: UNO POWER
Phoenix Contact UNO POWER power supplies with basic functionality are:
- Power range: 25 W to 480 W.
- Output voltages: 5 to 48 V DC.
- High efficiency up to 94% with low no-load losses below 0.3 W.
- Suitable for outdoor installation with a temperature range from -25°C to +70°C.
- Adjustable output voltage from 24 to 28 V DC for certain models.
- Wide input voltage ranges from 85 V AC to 264 V AC, with specific models for 264 V AC to 575 V AC.

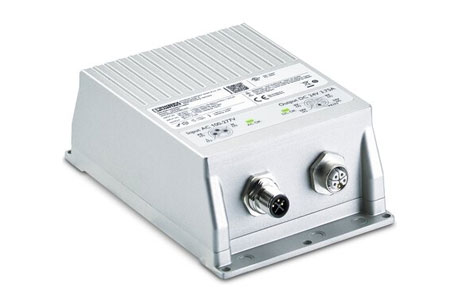

Phoenix Power: Power supplies with IP67
- TRIO-PS67/1AC/24DC/10/M12/5P: 1-phase input, 24 V DC/10 A output, IP67 die-cast housing, M12 connector.
- TRIO-PS67/1AC/24DC/8/INC: 1-phase input, 24 V DC/8 A output, 7/8″ connector, wall mount.
- TRIO-PS67/1AC/24DC/3.75/M12: 1-phase input, 24 V DC/3.75 A output, M12 connector, wall mount.
- TRIO-PS67/1AC/24DC/10/IPD: 1-phase input, 24 V DC/10 A output, IPD panel feed-through, Push-in connection.
- TRIO-PS-IP67/1AC/24DC/20 and TRIO-PS-IP67/3AC/24DC/20: 1-phase or 3-phase input, 24 V DC/20 A output, IP67 die-cast housing.

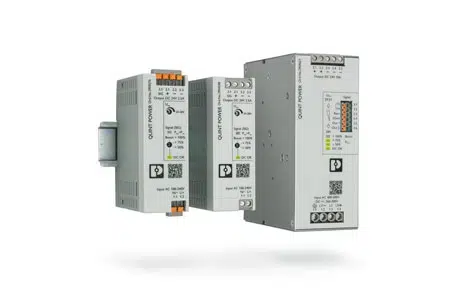

Phoenix SMPS Power Supply: QUINT POWER
Phoenix contact quint power supplies with maximum functionality include:
- Power ratings below 100 W.
- Output options: 24 V DC/20 A, 24 V DC/40 A, etc.
- 1-phase or 3-phase input.
- SFB Technology, function monitoring, power boosts.
- DIN rail mounting, -40°C to +70°C range.
- Communicative options with fieldbus or IO-Link.

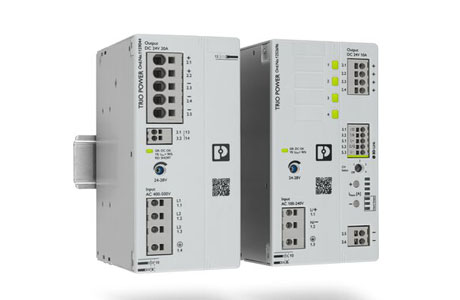

Phoenix Power Supply: TRIO POWER
Phoenix contact trio power supply functionality include:
- Type: Primary-switched units for DIN rail mounting.
- Models: Various models with different input/output specs (e.g., 3-phase input, 24V DC/20A output).
- Design: Compact, space-saving, easy handling.
- Dynamic Boost: Up to 150% output for 5 seconds for difficult loads.
- Operating Temperature: -25°C to +70°C.
- Advantages: Robust, reliable, efficient, and easy to install with push-in connection technology.
At IndMALL Automation, we offer a comprehensive range of Phoenix Switch Mode Power Supplies, catering to a variety of industrial needs. Our selection includes the versatile Step Power Series, ideal for both DIN rail or direct mounting, with outputs like 24 V DC / 2.5 A and convenient USB ports for device charging. The UNO POWER Series stands out for its efficiency, offering a power range from 25 W to 480 W, and is well-suited for outdoor installations with its adjustable output voltages. For environments demanding rugged durability, our IP67 Power Supplies provide robust IP67 protection and come in various output options.
The advanced QUINT POWER Series, with power ratings below 100 W, incorporates SFB Technology and offers communicative options for enhanced functionality. The TRIO POWER Series is a reliable choice for standard applications, offering a dynamic boost for challenging loads and easy installation with push-in technology. Our diverse Phoenix Contact SMPS range, including products like the Phoenix Contact Power Supply, Quint Power Supply, and Trio Power Supply, ensures efficiency, reliability, and adaptability to meet the specific demands of your industrial applications. Get A quote from us and compare it with other Phoenix SMPS Distributors.
Product List:
Model No |
Image |
Input Voltage |
Output voltage |
Mounting type |
Connection method |
|---|---|---|---|---|---|

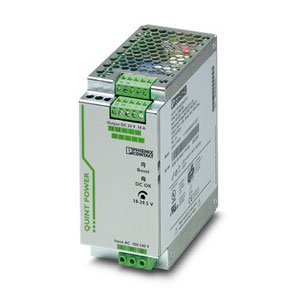

| QUINT-PS/1AC/24DC/10 |  |
100 V AC … 240 V AC | + 24 V DC | DIN rail | Screw |

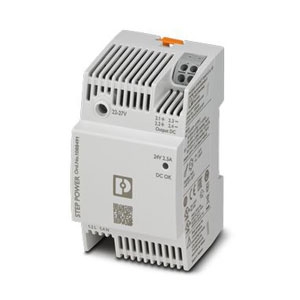

| STEP3-PS/1AC/24DC/2.5/PT |  |
100 V AC-240 V AC -15 % -+10 % | 24 V DC | DIN rail or direct | Push-in |

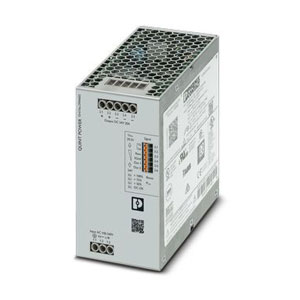

| QUINT4-PS/1AC/24DC/20 |  |
100 V AC … 240 V AC | 24 V DC | DIN rail | Screw |

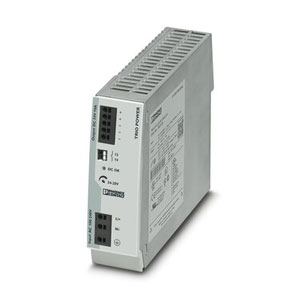

| TRIO-PS-2G/1AC/24DC/10 |  |
100 V AC … 240 V AC | 24 V DC ±1 % | DIN rail | Push-in |

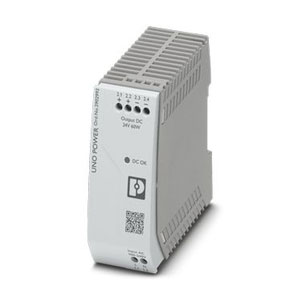

| UNO-PS/1AC/24DC/ 60W |  |
100 V AC … 240 V AC | 24 V DC ±1 % | DIN rail | Screw |
Our product lineup includes a variety of Phoenix SMPS models, each designed to meet specific industrial needs. The QUINT-PS/1AC/24DC/10 features an input voltage range of 100 V AC to 240 V AC and provides an output of +24 V DC, suitable for DIN rail mounting and equipped with a screw connection. The STEP3-PS/1AC/24DC/2.5/PT, with an input voltage of 100 V AC-240 V AC (-15% to +10%), offers a 24 V DC output and can be mounted on a DIN rail or directly, featuring a convenient push-in connection.
The QUINT4-PS/1AC/24DC/20, also supports a 100 V AC to 240 V AC input voltage and delivers a 24 V DC output, designed for DIN rail mounting with a screw connection. The TRIO-PS-2G/1AC/24DC/10 provides a stable 24 V DC ±1% output from a 100 V AC to 240 V AC input, and is DIN rail mountable with a push-in connection. Lastly, the UNO-PS/1AC/24DC/ 60W offers a similar input voltage range and a 24 V DC ±1% output, designed for DIN rail mounting and equipped with a screw connection.
Frequently Asked Questions
What is Quint Power Supply?
Why do we use 5V Power Supply?
What is a Step Power Supply?
A STEP power supply is designed for space-saving installation in distribution boards. It’s ideal for building automation systems. With its slim design, it efficiently powers control and monitoring systems. STEP power supplies offer reliable performance in compact spaces. They are a practical choice for modern electrical installations and automation projects.
What are the 3 Components of Power Supply?
A power supply typically consists of three main components: a transformer, a rectifier, and a regulator. The transformer adjusts the incoming voltage to required levels. The rectifier converts AC to DC power. The regulator maintains a constant output voltage, ensuring stable power supply to electronic devices.
Choose IndMALL for the best Phoenix SMPS power supply and exceptional customer support.
