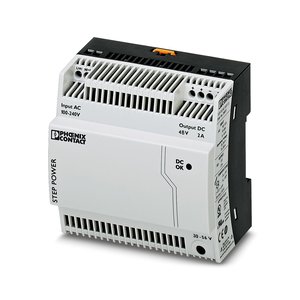

Phoenix STEP-PS/ 1AC/48DC/2 Power Supply
The Phoenix STEP-PS/ 1AC/48DC/2 Power Supply (Item No: 2868680 ) offers a 85 V AC ... 264 V AC input voltage range, > 90 % (for 230 V AC and nominal values) efficiency, 48 V DC nominal output voltage, 2 A (-25 °C ... 55 °C) nominal output current. Manufactured by Phoenix under the Phoenix Power Supply category, this model belongs to the Phoenix STEP Series.
| Brand | Phoenix Contact |
| Product Type | Power Supply |
| Model Number | STEP-PS/ 1AC/48DC/2 |
Phoenix STEP-PS/ 1AC/48DC/2 Power Supply – Technical Specifications
| Specification | Value |
|---|---|
| Nominal input voltage range | 100 V AC ... 240 V AC |
| Input voltage range | 85 V AC ... 264 V AC |
| Inrush current | < 15 A (typical) |
| Efficiency | > 90 % (for 230 V AC and nominal values) |
| Nominal output voltage | 48 V DC |
| Nominal output current (IN) | 2 A (-25 °C ... 55 °C) |
| Residual ripple | < 30 mVPP (20 MHz) |
| Power loss nominal load max. | 9.6 W |
| Insulation voltage input/output | 3.75 kV AC (routine test) |
| Mounting type | DIN rail mounting |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 70 °C (> 55° C derating : 2.5%/K) |
| EMC requirements for noise emission | EN 61000-6-3 |
| EMC requirements for noise immunity | EN 61000-6-1 |
Talk to Our Engineer for Phoenix 96 Watt Power Supply STEP-PS/ 1AC/48DC/2 part no: 2868680 with exclusive offers. Core System Specifications of STEP-PS/ 1AC/48DC/2, 2868680 are 85 V AC ... 264 V AC operates within an input voltage range, ensuring compatibility with various power systems. With an efficiency greater than > 90 % (for 230 V AC and nominal values) this sensor delivers energy-efficient performance. The nominal output voltage is 48 V DC with a residual ripple of less than 55° C derating : 2.5%/K). Don't Miss Out on a Quote for your requirement of Phoenix 96 Watt Power Supply. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
