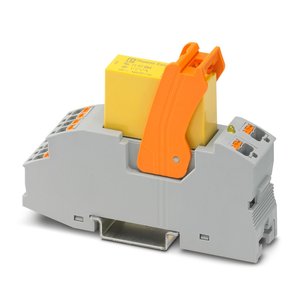

Phoenix RIF-RPT-LDP-24DC/1X2/3X1/AU/FG Relay Module
The Phoenix RIF-RPT-LDP-24DC/1X2/3X1/AU/FG Relay Module (Part No: 1148703 ) offers a nominal input voltage UN, input voltage range, polarized Drive, 10 ms typical response time. Manufactured by Phoenix under the Phoenix Relay Module category, this model belongs to the Phoenix PLC Series.
| Brand | Phoenix Contact |
| Product Type | Relay Module |
| Model Number | RIF-RPT-LDP-24DC/1X2/3X1/AU/FG |
Phoenix RIF-RPT-LDP-24DC/1X2/3X1/AU/FG Relay Module β Technical Specifications
| Specification | Value |
|---|---|
| Product type | Relay Module |
| Product family | RIFLINE complete |
| Application | Forcibly guided contacts |
| Mechanical service life | approx. 107 cycles |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 2 |
| Maximum power dissipation for nominal condition | 0.41 W |
| Test voltage (Winding/contact) | 4 kVrms (50 Hz, 1 min., winding/contact) |
| Rated surge voltage | 6 kV (Input/output) |
| Drive and function | monostable |
| Drive (polarity) | polarized |
| Typical input current at UN | 17 mA |
| Typical response time | 10 ms |
| Typical release time | 15 ms |
| Protective circuit | Freewheeling diode |
| Operating voltage display | - |
| Contact switching type | 3 N/O contacts, 1 N/C contact |
| Type of switch contact | Single contact |
| Contact material | AgSnO, hard gold-plated |
| Maximum switching voltage | 250 V AC |
| Limiting continuous current | 6 A |
| Maximum inrush current | 35 A (20 ms) |
| Min. switching current | 5 mA (10 V) |
| Interrupting rating (ohmic load) max. | 144 W (24 V DC) |
| Switching capacity | - |
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mmΒ² ... 1.5 mmΒ² |
| Conductor cross section flexible | 0.14 mmΒ² ... 1.5 mmΒ² |
| Conductor cross section AWG | 26 ... 16 (solid) |
| Tightening torque | - |
| Width | 21 mm |
| Height | 96 mm |
| depth | 67 mm |
| Color | - |
| Flammability rating according to UL 94 | V2 (Housing) |
| Degree of protection (Relay) | RT II (Relay) |
| Degree of protection (Relay base) | IP20 (Relay base) |
| Ambient temperature (operation) | -40 Β°C ... 60 Β°C |
| Ambient temperature (storage/transport) | -40 Β°C ... 85 Β°C |
| Temperature | - |
| Humidity | - |
| Vibration | - |
| EMC | - |
| Enclosure | - |
| Low Voltage Directive | - |
| Electromagnetic compatibility | - |
| Standards/regulations | EN 61810-1 |
| Mounting Type | DIN rail mounting |
| Mounting position | any |
| Contact Connection type | - |
| Output fuse | - |
| Degree of protection (Installation location) | IP54 (Installation location) |
The Phoenix Contact RIF-RPT-LDP-24DC/1X2/3X1/AU/FG (Part No: 1148703) Relay Module is part of the trusted RIFLINE complete product family, known for its reliable performance in safety-critical and automation control circuits. Designed with forcibly guided contacts, this Phoenix Contact 1 N/C Relay Module ensures safe switching operations even under demanding load conditions. It offers a mechanical service life of approximately 10β· cycles, making it highly durable for repetitive operations. With 3 N/O and 1 N/C contacts crafted from AgSnO gold-plated material, the module guarantees superior conductivity and minimal contact wear. Operating at a typical input current of 17 mA, it delivers fast response and release times of 10 ms and 15 ms respectively, ensuring reliable signal transmission. The freewheeling diode protection circuit enhances operational safety, while the push-in connection system simplifies installation and minimizes maintenance downtime. Its compact dimensions (21 mm width, 96 mm height, and 67 mm depth) make it ideal for use in confined control panels where efficiency and reliability are crucial.
The Phoenix Contact Relay Module RIF-RPT-LDP-24DC/1X2/3X1/AU/FG (1148703) is ideal for industrial machinery, PLC interfaces, and automation systems requiring 1 N/C relay functionality with dependable control. Its forcibly guided contact design ensures safety in machine control, robotics, and signal isolation applications, preventing accidental overlap between normally open and closed contacts. Engineers across industries value its vibration-resistant construction, low power dissipation of 0.41 W, and IP20 protection rating. Suitable for DIN rail mounting, it performs efficiently across temperatures ranging from -40Β°C to 60Β°C, ensuring consistent operation in harsh industrial environments. Maintenance teams rely on this module for smooth load switching, signal monitoring, and system interlocking in process automation and production systems.
The Phoenix Contact RIF-RPT-LDP-24DC/1X2/3X1/AU/FG (1148703) combines high switching reliability, robust design, and compact construction to meet modern industrial demands. The RIF-RPT-LDP-24DC/1X2/3X1/AU/FG ensures dependable operation, quick response, and long mechanical endurance. Trusted by automation engineers, the RIF-RPT-LDP-24DC/1X2/3X1/AU/FG-1148703 model is ideal for control systems where precision and safety are essential. The Phoenix Contact RIF-RPT-LDP-24DC/1X2/3X1/AU/FG continues to set a high standard for reliability in electrical switching and automation systems.
