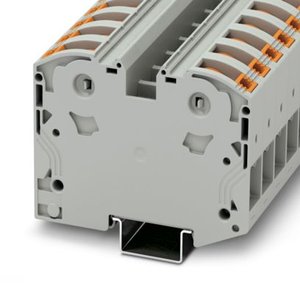

PTPOWER 35 - 3212064 - Phoenix High Current Terminal Block
PTPOWER 35 3212064 Phoenix High Current Terminal Block
| Brand | Phoenix Contact |
| Product Type | Terminal Block |
| Product | PTPOWER 35 |
PTPOWER 35 , 3212064, Phoenix High Current Terminal Block Technical Specifications
| Specification | Value |
|---|---|
| Product type | High current terminal block |
| Number of positions | - |
| Number of connections | 2 |
| Number of rows | 1 |
| Potentials | 1 |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 4.06 W |
| Number of connections per level | 2 |
| Nominal cross section | 35 mmΒ² |
| Stripping length | 25 mm |
| Internal cylindrical gage | - |
| Connection in acc. with standard | - |
| Conductor cross section rigid | 2.5 mmΒ² ... 35 mmΒ² |
| Nominal current | 125 A |
| Maximum load current | 109 A |
| Nominal voltage | 1000 V |
| Operating temperature range | -60 Β°C ... 110 Β°C |
| Ex temperature increase | 40 K (120 A/35 mmΒ²) |
| for bridging with bridge | 690 V |
| Rated insulation voltage | 660 V |
| output | (Permanent) |
| Rated voltage | 690 V |
| Rated current | 109 A |
| Contact resistance | 0.16 mΞ© |
| Connection capacity rigid | 2.5 mmΒ² ... 35 mmΒ² |
| Connection capacity AWG | 12 ... 2 |
| Width | 16 mm |
| Height | 91.6 mm |
| Depth | - |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PA |
| Static insulating material application in cold | -60 Β°C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 Β°C |
| Test voltage setpoint | 2.2 kV |
| Open side panel | No |
| DIN rail/fixing support | NS 35 |
| Test force setpoint | 10 N |
| Rotation speed | 10 rpm |
| Revolutions | 135 |
| Conductor cross section/weight | 2.5 mmΒ² / 0.7 kg |
| Time of exposure | 30 s |
| Frequency | f1 = 5 Hz to f2 = 250 Hz |
| ASD level | 6.12 (m/sΒ²)Β²/Hz |
| Acceleration | 30g |
| Test duration per axis | 5 h |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Pulse shape | Half-sine |
| Shock duration | 18 ms |
| Number of shocks per direction | 3 |
| Ambient temperature (operation) | -60 Β°C ... 110 Β°C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 Β°C ... 60 Β°C (for a short time, not exceeding 24 h, -60 Β°C to +70 Β°C) |
| Ambient temperature (assembly) | -5 Β°C ... 70 Β°C |
| Ambient temperature (actuation) | -5 Β°C ... 70 Β°C |
| Permissible humidity (operation) | 20 % ... 90 % |
