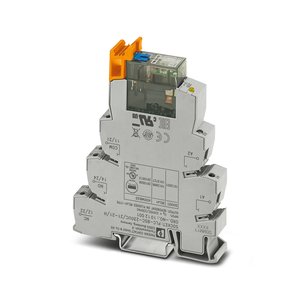

PLC-RSC-230UC/21-21AU/MS: 2910513 - Phoenix 230 V AC / 220 V DC Relay
Technical Specifications of Phoenix 230 V AC / 220 V DC Relay PLC-RSC-230UC/21-21AU/MS 2910513:
Spec | Value |
---|---|
Product type | Relay Module |
Nominal input voltage UN | 230 V AC |
Connection method | Screw connection |
Mounting type | DIN rail mounting |
Phoenix Contact 60V DC Relay Module PLC-RPT- 60DC/21AU, 2900309 Technical Specifications:
Specification | Value |
---|---|
Product type | Relay Module |
Product family | PLC-INTERFACE |
Application | Palm switch |
Mechanical service life | 5x 106 cycles |
Insulation | Safe isolation, reinforced insulation |
Overvoltage category | III |
Pollution degree | 2 |
Maximum power dissipation for nominal condition | 1.15 W |
Test voltage (Winding/contact) | 4 kVrms (50 Hz, 1 min., winding/contact) |
Test voltage (Changeover contact/changeover contact) | 2.5 kVrms (50 Hz, 1 min., changeover contact/changeover contact) |
Rated surge voltage | 6 kV |
Nominal input voltage UN | 230 V AC |
Input voltage range | 207 V AC ... 264.5 V AC (20 °C) |
Drive and function | monostable |
Drive (polarity) | polarized |
Typical input current at UN | 5 mA |
Typical response time | 6 ms (220 V DC) |
Typical release time | 10 ms (220 V DC) |
Protective circuit | Bridge rectifier; Bridge rectifier |
Operating voltage display | Yellow LED |
Contact switching type | 2 changeover contacts |
Type of switch contact | Single contact |
Contact material | AgNi, hard gold-plated |
Maximum switching voltage | 250 V AC/DC |
Limiting continuous current | 6 A |
Maximum inrush current | 12 A (20 ms) |
Min. switching current | 10 mA (12 V) |
Interrupting rating (ohmic load) max. | 192 W (24 V DC) |
Switching capacity | 1 A (24 V, DC13) |
Connection method | Screw connection |
Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 |
Tightening torque | 0.6 Nm ... 0.8 Nm |
Width | 14 mm |
Height | 80 mm |
depth | 104 mm |
Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 (Housing) |
Degree of protection (Relay) | RT II (Relay) |
Degree of protection (Relay base) | IP20 (Relay base) |
Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 85 °C |
Temperature | D |
Humidity | A |
Vibration | B/C |
EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Low Voltage Directive | Conformance with Low Voltage Directive |
Electromagnetic compatibility | Conformance with EMC directive |
Standards/regulations | EN 50178 |
Mounting Type | DIN rail mounting |
Mounting position | any |
Contact Connection type | - |
Output fuse | - |
Degree of protection (Installation location) | ≥ IP54 (Installation location) |
