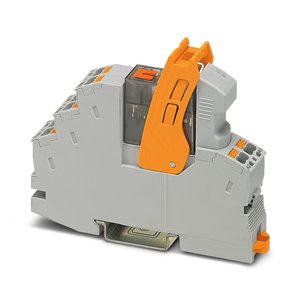

RIF-1-RPT-LV-24AC/2X21MS: 1049232 - Phoenix 2 Changeover Relay Module
Technical Specifications of Phoenix 2 Changeover Relay Module RIF-1-RPT-LV-24AC/2X21MS 1049232:
Spec | Value |
---|---|
Product type | Relay Module |
Nominal input voltage UN | 24 V AC |
Connection method | Push-in connection |
Mounting type | DIN rail mounting |
Phoenix 230V AC/DC Input Relay PLC-RPT-230UC/21-21/SO46, 1136245 Technical Specifications:
Specification | Value |
---|---|
Product type | Relay Module |
Product family | RIFLINE complete |
Application | Universal |
Mechanical service life | approx. 107 cycles |
Insulation | Safe isolation between input and output |
Overvoltage category | III |
Pollution degree | 2 |
Maximum power dissipation for nominal condition | 0.8 W |
Test voltage (Winding/contact) | 4 kVrms (50 Hz, 1 min., winding/contact) |
Test voltage (Changeover contact/changeover contact) | 2.5 kVrms (50 Hz, 1 min., changeover contact/changeover contact) |
Rated surge voltage | 6 kV (Input/output) |
Nominal input voltage UN | 24 V AC |
Input voltage range | 19.2 V AC ... 27.6 V AC (20 °C) |
Drive and function | monostable |
Drive (polarity) | polarized |
Typical input current at UN | 32 mA |
Typical response time | 3 ms ... 12 ms |
Typical release time | - |
Protective circuit | Varistor |
Operating voltage display | Yellow LED |
Contact switching type | 2 changeover contacts |
Type of switch contact | Single contact |
Contact material | AgNi |
Maximum switching voltage | 250 V AC/DC |
Limiting continuous current | 8 A (see diagram) |
Maximum inrush current | 12 A (20 ms, N/O contacts) |
Min. switching current | 10 mA (5 V) |
Interrupting rating (ohmic load) max. | 192 W (at 24 V DC) |
Switching capacity | - |
Connection method | Push-in connection |
Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
Conductor cross section AWG | 26 ... 16 (solid) |
Tightening torque | - |
Width | 16 mm |
Height | 96 mm |
depth | 75 mm |
Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V2 (Housing) |
Degree of protection (Relay) | RT III (Relay) |
Degree of protection (Relay base) | IP20 (Relay base) |
Ambient temperature (operation) | -40 °C ... 50 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Temperature | - |
Humidity | - |
Vibration | - |
EMC | - |
Enclosure | - |
Low Voltage Directive | - |
Electromagnetic compatibility | - |
Standards/regulations | IEC 60947-5-1 |
Mounting Type | DIN rail mounting |
Mounting position | any |
Contact Connection type | - |
Output fuse | - |
Degree of protection (Installation location) | - |
Mail Us for your needs in Phoenix 2 Changeover Relay Module RIF-1-RPT-LV-24AC/2X21MS part no: 1049232 with budget-friendly prices. The Main Technical Parameters of RIF-1-RPT-LV-24AC/2X21MS, 1049232 inludce Relay Module type and RIFLINE complete Product family a versatile solution for Universal applications. This relay module features a mechanical service life of approx. 107 cycles, ensuring durability and reliability. With a maximum power dissipation of 0.8 W, it operates efficiently at a nominal input voltage of 24 V AC, within an input voltage range of 19.2 V AC ... 27.6 V AC (20 °C). The module has a typical input current of 32 mA at UN, with a response time of 3 ms ... 12 ms and a release time of -. It is equipped with a Varistor for protection and includes 2 changeover contacts made from Push-in connection Connection method. Customize Your Experience with a Quote for your requirement of Phoenix 2 Changeover Relay Module. Experience the difference with our competitive pricing and superior support over other Suppliers.
