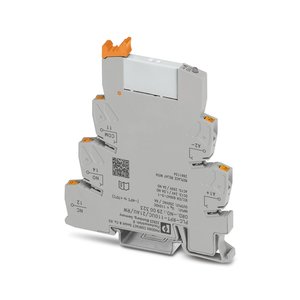

PLC-RPT-110UC/21AU/RW: 2900323 - Phoenix 110V Contact Relay
Technical Specifications of Phoenix 110V Contact Relay PLC-RPT-110UC/21AU/RW 2900323:
Spec | Value |
---|---|
Product type | Relay Module |
Nominal input voltage UN | 110 V DC |
Connection method | Push-in connection |
Mounting type | DIN rail mounting |
Phoenix 60V Input Voltage Relay PLC-RSC- 60DC/21HC, 2967659 Technical Specifications:
Specification | Value |
---|---|
Product type | Relay Module |
Product family | PLC-INTERFACE |
Application | Railway applications |
Mechanical service life | approx. 2x 107 cycles |
Insulation | - |
Overvoltage category | III |
Pollution degree | 2 |
Maximum power dissipation for nominal condition | 0.22 W |
Test voltage (Winding/contact) | 4 kVrms (50 Hz, 1 min., winding/contact) |
Test voltage (Changeover contact/changeover contact) | - |
Rated surge voltage | 6 kV |
Nominal input voltage UN | 110 V DC |
Input voltage range | 77 V DC ... 137.5 V DC |
Drive and function | monostable |
Drive (polarity) | polarized |
Typical input current at UN | 2 mA |
Typical response time | 4 ms |
Typical release time | 4 ms |
Protective circuit | Surge protection; Freewheeling diode |
Operating voltage display | Yellow LED |
Contact switching type | 1 changeover contact |
Type of switch contact | Single contact |
Contact material | AgSnO, hard gold-plated |
Maximum switching voltage | 250 V AC/DC (Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules.) |
Limiting continuous current | 6 A (see derating curve) |
Maximum inrush current | 50 mA |
Min. switching current | 10 mA |
Interrupting rating (ohmic load) max. | 140 W (at 24 V DC) |
Switching capacity | 2 A (at 24 V, DC13) |
Connection method | Push-in connection |
Stripping length | 10 mm |
Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 14 |
Tightening torque | - |
Width | 6.2 mm |
Height | 80 mm |
depth | 94 mm |
Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 (Housing) |
Degree of protection (Relay) | RT III (Relay) |
Degree of protection (Relay base) | IP20 (Relay base) |
Ambient temperature (operation) | -40 °C ... 70 °C (Temperature class TX) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Temperature | D |
Humidity | A |
Vibration | B/C |
EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Low Voltage Directive | Conformance with Low Voltage Directive |
Electromagnetic compatibility | Conformance with EMC directive |
Standards/regulations | IEC 60947-5-1 |
Mounting Type | DIN rail mounting |
Mounting position | any |
Contact Connection type | - |
Output fuse | 4 A gL/gG NEOZED |
Degree of protection (Installation location) | - |
Get A Quote for Phoenix 110V Contact Relay PLC-RPT-110UC/21AU/RW part no: 2900323 at the best price. Here are the brief Technical Specifications of PLC-RPT-110UC/21AU/RW, 2900323 are Relay Module type and PLC-INTERFACE Product family a versatile solution for Railway applications applications. This relay module features a mechanical service life of approx. 2x 107 cycles, ensuring durability and reliability. With a maximum power dissipation of 0.22 W, it operates efficiently at a nominal input voltage of 110 V DC, within an input voltage range of 77 V DC ... 137.5 V DC. The module has a typical input current of 2 mA at UN, with a response time of 4 ms and a release time of 4 ms. It is equipped with a Surge protection; Freewheeling diode for protection and includes 1 changeover contact made from Push-in connection Connection method. It's Time to get a Quote for your requirement of Phoenix 110V Contact Relay. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
