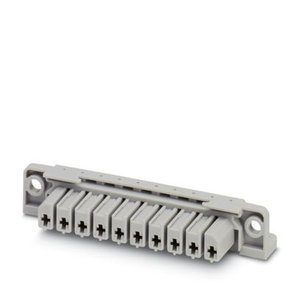

HCC 4-FC - 1600030 - Phoenix High Current Terminal Block
HCC 4-FC 1600030 Phoenix High Current Terminal Block
| Brand | Phoenix Contact |
| Product Type | Terminal Block |
| Product | HCC 4-FC |
HCC 4-FC , 1600030, Phoenix High Current Terminal Block Technical Specifications
| Specification | Value |
|---|---|
| Product type | High current terminal block |
| Number of positions | 10 |
| Number of connections | 10 |
| Number of rows | 1 |
| Potentials | 10 |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 6 kV |
| Maximum power dissipation for nominal condition | 0.77 W |
| Number of connections per level | 10 |
| Nominal cross section | 1.5 mm² |
| Screw thread | - |
| Tightening torque | - |
| Stripping length | - |
| Internal cylindrical gage | - |
| Connection in acc. with standard | IEC 61984 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Nominal current | 13.5 A |
| Maximum load current | 13.5 A (with STG-MTN 0,5-1,0 contact) |
| Nominal voltage | 400 V |
| Width | 92 mm |
| Height | 27.6 mm |
| Depth | 17 mm |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V2 |
| Insulating material group | I |
| Insulating material | PA |
| Static insulating material application in cold | - |
| Relative insulation material temperature index (Elec., UL 746 B) | - |
| Test voltage setpoint | - |
| Open side panel | No |
| DIN rail/fixing support | - |
| Test force setpoint | - |
| Rotation speed | - |
| Revolutions | - |
| Conductor cross section/weight | - |
| Time of exposure | - |
| Frequency | - |
| ASD level | - |
| Acceleration | - |
| Test duration per axis | - |
| Test directions | - |
| Pulse shape | - |
| Shock duration | - |
| Number of shocks per direction | - |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
