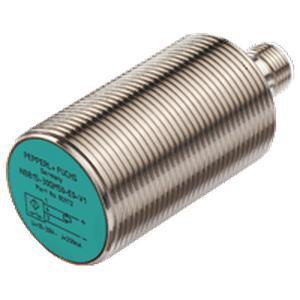

Pepperl Fuchs NRB15-30GS50-E2-IO-V1 Proximity Sensor
The Pepperl Fuchs NRB15-30GS50-E2-IO-V1 Proximity Sensor offers a 15 mm (factory setting) operating distance, 3-wire, PNP, Normally open/closed (NO/NC) programmable, output, and flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | NRB15-30GS50-E2-IO-V1 |
Pepperl Fuchs NRB15-30GS50-E2-IO-V1 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | Normally open/closed (NO/NC) programmable |
| Output type | 3-wire, PNP |
| Rated operating distance | 15 mm (factory setting) |
| Installation | flush |
| Assured operating distance | 0 ... 12.15 mm |
| Switching frequency | 0 ... 600 Hz (switch point mode)0 ... 25 Hz (window mode, switch point mode with stability alarm) |
| Hysteresis | typ. 3 % |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Storage temperature | -40 ... 85 Β°C (-40 ... 185 Β°F) |
| Connection type | Connector plug M12 x 1 , 4-pin |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | PBT |
| Degree of protection | IP67 |
| Mass | 153 g |
