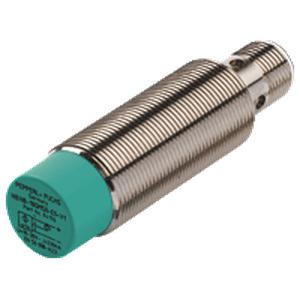

Home Products Proximity Sensor Pepperl Fuchs NRN15-18GS40-E2-IO-V1 Pepperl Fuchs NRN15-18GS40-E2-IO-V1 Proximity Sensor The Pepperl Fuchs NRN15-18GS40-E2-IO-V1 Proximity Sensor offers a 15 mm (factory setting) operating distance, 3-wire, PNP, Normally open/closed (NO/NC) programmable, output, and non-flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
Brand Pepperl Fuchs Product Proximity Sensor Model Number NRN15-18GS40-E2-IO-V1
Pepperl Fuchs NRN15-18GS40-E2-IO-V1 Proximity Sensor – Technical Specifications Specification Value Switching function Normally open/closed (NO/NC) programmable Output type 3-wire, PNP Rated operating distance 15 mm (factory setting) Installation non-flush Assured operating distance 0 ... 12.15 mm Switching frequency 0 ... 550 Hz (switch point mode)0 ... 50 Hz (window mode, switch point mode with stability alarm) Hysteresis typ. 3 % Reverse polarity protection reverse polarity protected Short-circuit protection pulsing Ambient temperature -25 ... 70 °C (-13 ... 158 °F) Storage temperature -40 ... 85 °C (-40 ... 185 °F) Connection type Connector plug M12 x 1 , 4-pin Housing material Stainless steel 1.4305 / AISI 303 Sensing face PBT Degree of protection IP67 Mass 51 g
