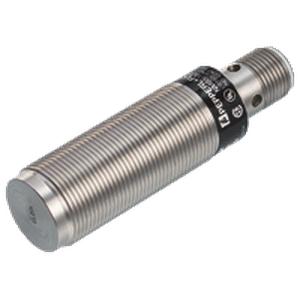

Pepperl Fuchs NMB10-18GM65-E2-V1 Proximity Sensor
The Pepperl Fuchs NMB10-18GM65-E2-V1 Proximity Sensor offers a 10 mm operating distance, 3-wire, PNP, Normally open (NO), output, and flush (Requirements: see drawing below) installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | NMB10-18GM65-E2-V1 |
Pepperl Fuchs NMB10-18GM65-E2-V1 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | Normally open (NO) |
| Output type | 3-wire, PNP |
| Rated operating distance | 10 mm |
| Installation | flush (Requirements: see drawing below) |
| Output polarity | DC |
| Assured operating distance | 0 ... 8.1 mm |
| Operating voltage | 10 ... 30 V DC |
| Switching frequency | 0 ... 240 Hz |
| Hysteresis | 3 ... 15 typ. 5 % |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Switching state indicator | LED, yellow |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Connection type | Connector plug M12 x 1 , 4-pin |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | Stainless steel 1.4305 / AISI 303 |
| Degree of protection | IP67 |
