Pepperl Fuchs Proximity Sensors NMB5-12GM65-E2-V1
NMB5-12GM65-E2-V1 Technical Specifications:
At IndMALL Automation, we have the perfect solution to cater to your P&F Inductive Proximity Switch needs with the NMB5-12GM65-E2-V1. This sensor comes equipped with an M8 Sensor head, has a rated operating distance of 6mm, a PNP output, and features a non-flush installation with a NO Switching function.
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 5 mm |
| Installation | Flush |
| Output polarity | DC |
| Assured operating distance | 0 … 4.05 mm |
| Actuating element | Ferrous and nonferrous targets |
| Output type | 3-wire |
| Operating voltage | 10… 30 V DC |
| Switching frequency | 0 … 360 Hz |
| Operating current | ≤ 200 mA |
| Operating voltage indicator | LED, green |
| Switching state indicator | LED, yellow |
| Ambient temperature | -25 … 85 °C (-13 … 185 °F) |
| Connection type | Connector plug M12 x 1 , 4-pin |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | Stainless steel 1.4305 / AISI 303 |
| Degree of protection | IP67 / IP68 / IP69K |
Product Documentation: NMB5-12GM65-E2-V1
Related Products: NMB5-12GM65-E2-V1
NRB12-18GS40-E2-V1
Inductive Proximity Sensor, Rated operating distance: 12 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Quasi flush, Switching frequency: 0 … 600 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug M12 x 1, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NMB6-12GH50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 6 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush in mild steel, Switching frequency: 0 … 600 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug M12 x 1, 4-pin, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4435 / AISI 316L, Degree of protection: IP68 / IP69K.
NMB5-18GM65-E2-FE-V1
Inductive Proximity Sensor, Sensor diameter: M18, Rated operating distance: 5 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 15 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug M12 x 1, 4-pin, Operating voltage: 10 … 30 V DC, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67 / IP68 / IP69K.
NMB5-12GM65-E2-V1
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 5 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 360 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug M12 x 1, 4-pin, Operating voltage: 10 … 30 V DC, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67 / IP68 / IP69K.
NMB5-12GM55-E2
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 5 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 360 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable (2m PUR cable), Operating voltage: 10 … 30 V DC, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP69K.
NMB3-8GM50-E2-V3
Inductive Proximity Sensor, Sensor diameter: M8, Rated operating distance: 3 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 360 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Connector plug M8 x 1, Operating voltage: 10 … 30 V DC, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NBB4-12GM50-E2
Inductive Proximity Sensor, Sensor diameter: M12, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 2550 Hz, Output type: 3-wire, Construction type: Cylindrical thread, Sensor length: 50mm, Type of voltage: DC, Connection type: 2 m PVC cable, Operating voltage: DC 10-30V, Housing material: PBT, Degree of protection: IP68
NBB4-12GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M12, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 2550 Hz, Output type: 3-wire, Construction type: Cylindrical thread, Type of voltage: DC, Connection type: Connector plug, Operating voltage: DC 5-36V, Housing material: Brass, white bronze coated, Sensing face: PBT, green, Degree of protection: IP68.
NBB5-18GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M18, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1950 Hz, Output type: 3-wire, Construction type: Cylindrical thread, Rated operating distance: 5 mm, Type of voltage: DC, Connection type: Connector plug, Operating voltage: DC 5-36V, Housing material: Brass, white bronze coated, Sensing face: PBT, green, Degree of protection: IP68.
NBB8-18GM50-E2
Inductive Proximity Sensor, Sensor diameter: M18, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1350 Hz, Output type: 3-wire, Construction type: Not specified, Sensor length: 24mm x 24mm x 1mm, Type of voltage: DC, Connection type: 2 m PVC cable, Operating voltage: DC 5-36V, Housing material: Brass with white bronze coating, Degree of protection: IP68.
NBN3-8GM50-E2
Inductive Proximity Sensor, Sensor diameter: M8, Switching function: Normally open (NO), Output type: PNP, Installation: Non-flush, Switching frequency: 0 … 4500 Hz, Output type: 3-wire, Sensor length: Not specified, Type of voltage: DC, Connection type: 2 m PVC cable, Operating voltage: DC 5-30V, Housing material: Brass with nickel-plating, Degree of protection: IP67.
NBB2-12GM50-E2-V1
Inductive Proximity Sensor, Sensor diameter: M12, Rated operating distance: 2 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1500 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: 4-pin M12 x 1 connector, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NBB0 6-3M22-E2
Inductive Proximity Sensor, Sensor diameter: 0.6mm, Rated operating distance: 0.6 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1400 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.

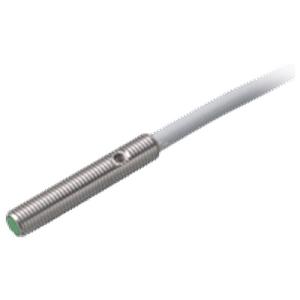

NBB0 6-4GM22-E2
Inductive Proximity Sensor, Rated operating distance: 0.6 mm, Switching function: Normally open (NO), Output type: PNP, Installation: Flush, Switching frequency: 0 … 1400 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
NBB0 8-4M25-E0
Inductive Proximity Sensor, Rated operating distance: 0.8 mm, Switching function: Normally open (NO), Output type: NPN, Installation: Flush, Switching frequency: 0 … 3000 Hz, Output type: 3-wire, Type of voltage: DC, Connection type: Cable, Operating voltage: 10 … 30 V, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67.
The Pepperl Fuchs NMB5-12GM65-E2-V1 is an inductive proximity switch that serves as a reliable proximity sensor for industrial applications. This P&F proximity switch features a normally open (NO) switching function, PNP output type, and a rated operating distance of 5mm.
It is designed for flush installation and can detect ferrous and nonferrous targets within an assured operating distance of 0-4.05 mm. The sensor has a 3-wire output type with DC polarity and operates at an operating voltage of 10-30 V DC, with a maximum operating current of 200 mA. The switching frequency ranges from 0-360 Hz, and the switching state indicator is a yellow LED that provides visibility of the sensor output.
The green LED acts as an operating voltage indicator. The housing material and sensing face are constructed with stainless steel 1.4305 / AISI 303, and the sensor has a degree of protection of IP67 / IP68 / IP69K. It is designed with a connector plug M12 x 1, 4-pin connection type and can operate in an ambient temperature range of -25 … 85 °C (-13 … 185 °F).
You can check the P&F 5mm series with the Connector type.
