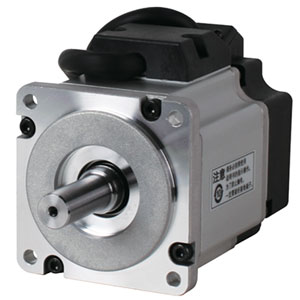

Panasonic MSMF082L1U2M Servo Motor
The Panasonic MSMF082L1U2M Servo Motor offers a Low inertia type, 80 mm sq. dimension, Key-way, center tap shaft, and 2.39 rated torque. Manufactured by Panasonic under the Panasonic Servo Motor category, this model belongs to the MSMF Series.
| Brand | Panasonic |
| Product Type | Servo Motor |
| Model Number | MSMF082L1U2M |
Panasonic MSMF082L1U2M Servo Motor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Low inertia |
| Protection Class | IP65 |
| Flange sq. Dimension | 80 mm sq. |
| Flange sq. Dimension (Unit:mm) | 80 |
| Motor Lead-out Configuration | Lead wire |
| Motor Encoder Connector | Lead wire |
| Power Supply Capacity (kVA) | 1.8 |
| Voltage Specifications (V) | 200 |
| Rated Output (W) | 750 |
| Rated Current (A (rms)) | 4.1 |
| Shaft | Key-way, center tap |
| Rated Torque (N β m) | 2.39 |
| Continuous Stall Torque (N β m) | 2.39 |
| Momentary Max. Peak Torque (N β m) | 7.16 |
| Max. Current (A (o-p)) | 17.4 |
| Rated Rotational Speed (r/min) | 3000 |
| Rated Rotational Max. Speed (r/min) | 6000 |
| Moment of Inertia of Rotor ( x10-4 kg β mΒ²) | 0.96 |
Call us for Panasonic 750 watt AC Servo Motor, MSMF082L1U2M at competitive rates. Technical Attributes of MSMF082L1U2M are Key-way, center tap, 4.1, 750, 2.39. And It Delivers 750, 4.1, Key-way, center tap. Unlock Exclusive Pricing with a Quote for your requirement of Panasonic 750 watt AC Servo Motor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other Dealers.
