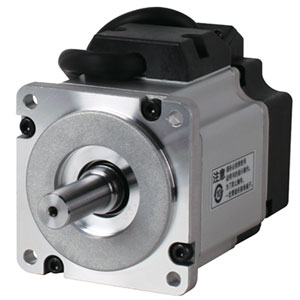

Panasonic MSMF042L1S2 Servo Motor
The Panasonic MSMF042L1S2 Servo Motor offers a Low inertia type, 60 mm sq. dimension, Key-way, center tap shaft, and 1.27 rated torque. Manufactured by Panasonic under the Panasonic Servo Motor category, this model belongs to the MSMF Series.
| Brand | Panasonic |
| Product Type | Servo Motor |
| Model Number | MSMF042L1S2 |
Panasonic MSMF042L1S2 Servo Motor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Low inertia |
| Protection Class | IP65 |
| Flange sq. Dimension | 60 mm sq. |
| Flange sq. Dimension (Unit:mm) | 60 |
| Motor Lead-out Configuration | Lead wire |
| Motor Encoder Connector | Lead wire |
| Power Supply Capacity (kVA) | 0.9 |
| Voltage Specifications (V) | 200 |
| Rated Output (W) | 400 |
| Rated Current (A (rms)) | 2.4 |
| Shaft | Key-way, center tap |
| Rated Torque (N β m) | 1.27 |
| Continuous Stall Torque (N β m) | 1.27 |
| Momentary Max. Peak Torque (N β m) | 3.82 |
| Max. Current (A (o-p)) | 10.2 |
| Rated Rotational Speed (r/min) | 3000 |
| Rated Rotational Max. Speed (r/min) | 6000 |
| Moment of Inertia of Rotor ( x10-4 kg β mΒ²) | 0.27 |
Obtain a Quote for Panasonic 200V 400W Servo Motor MSMF042L1S2 at attractive prices. Core System Specifications of MSMF042L1S2 are Key-way, center tap, 2.4, 400 & 1.27. It functionality Includes 60 mm sq., 60 & Lead wire. Elevate Your Project with a Quote for your requirement of Panasonic 200V 400W Servo Motor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
