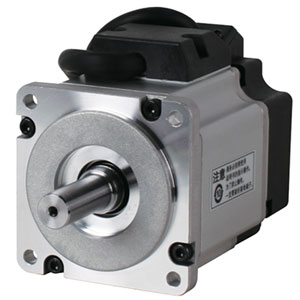

Panasonic MSMF041L1A2 Servo Motor
The Panasonic MSMF041L1A2 Servo Motor offers a Low inertia type, 60 mm sq. dimension, Round shaft, and 1.27 rated torque. Manufactured by Panasonic under the Panasonic Servo Motor category, this model belongs to the MSMF Series.
| Brand | Panasonic |
| Product Type | Servo Motor |
| Model Number | MSMF041L1A2 |
Panasonic MSMF041L1A2 Servo Motor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Low inertia |
| Protection Class | IP65 |
| Flange sq. Dimension | 60 mm sq. |
| Flange sq. Dimension (Unit:mm) | 60 |
| Motor Lead-out Configuration | Lead wire |
| Motor Encoder Connector | Lead wire |
| Power Supply Capacity (kVA) | 0.9 |
| Voltage Specifications (V) | 100 |
| Rated Output (W) | 400 |
| Rated Current (A (rms)) | 4.6 |
| Shaft | Round |
| Rated Torque (N β m) | 1.27 |
| Continuous Stall Torque (N β m) | 1.27 |
| Momentary Max. Peak Torque (N β m) | 3.82 |
| Max. Current (A (o-p)) | 19.5 |
| Rated Rotational Speed (r/min) | 3000 |
| Rated Rotational Max. Speed (r/min) | 6000 |
| Moment of Inertia of Rotor ( x10-4 kg β mΒ²) | 0.27 |
Reach Us by Email for Panasonic 100 V, 400 W Servo Motors, MSMF041L1A2 at Discounted Rates. Key Technical Features of MSMF041L1A2 are Round, 4.6, 400 & 1.27. Additionally, it provides 60 mm sq., 60 & Lead wire. Navigate Your Needs with a Quote for your requirement of Panasonic 100 V, 400 W Servo Motors. Our pricing and support are unrivaled, especially when compared to other Competitors.
