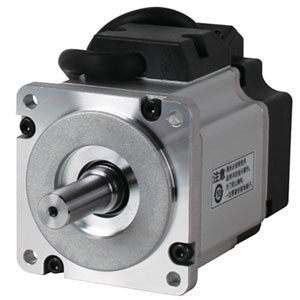

Panasonic MSMF022L1V2Servo Motor
The Panasonic MSMF022L1V2 Servo Motor offers a Low inertia type, 60 mm sq. dimension, Key-way, center tap shaft, and 0.64 rated torque. Manufactured by Panasonic under the Panasonic Servo Motor category, this model belongs to the MSMF Series.
| Brand | Panasonic |
| Product Type | Servo Motor |
| Model Number | MSMF022L1V2 |
Panasonic MSMF022L1V2 Servo Motor – Technical Specifications
| Specification | Value |
|---|---|
| Type | Low inertia |
| Protection Class | IP65 |
| Flange sq. Dimension | 60 mm sq. |
| Flange sq. Dimension (Unit:mm) | 60 |
| Motor Lead-out Configuration | Lead wire |
| Motor Encoder Connector | Lead wire |
| Power Supply Capacity (kVA) | 0.5 |
| Voltage Specifications (V) | 200 |
| Rated Output (W) | 200 |
| Rated Current (A (rms)) | 1.5 |
| Shaft | Key-way, center tap |
| Rated Torque (N ⋅ m) | 0.64 |
| Continuous Stall Torque (N ⋅ m) | 0.64 |
| Momentary Max. Peak Torque (N ⋅ m) | 1.91 |
| Max. Current (A (o-p)) | 6.5 |
| Rated Rotational Speed (r/min) | 3000 |
| Rated Rotational Max. Speed (r/min) | 6000 |
| Moment of Inertia of Rotor ( x10-4 kg ⋅ m²) | 0.17 |
Give Us a Call for Panasonic 200 V, 200 W Servo Motors MSMF022L1V2 at the lowest pricing. In-depth Technical Analysis of MSMF022L1V2 includes Key-way, center tap, 1.5, 200 & 0.64. It functionality Includes 60 mm sq., 60 & Lead wire. Elevate Your Project with a Quote for your requirement of Panasonic 200 V, 200 W Servo Motors. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
