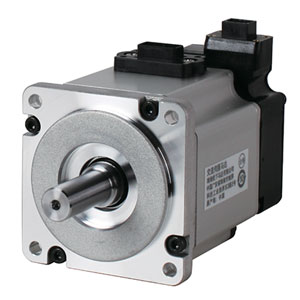

Panasonic MSMF012L1C2M Servo Motor
The Panasonic MSMF012L1C2M Servo Motor offers a Low inertia type, 38 mm sq. dimension, Round shaft, and 0.32 rated torque. Manufactured by Panasonic under the Panasonic Servo Motor category, this model belongs to the MSMF Series.
| Brand | Panasonic |
| Product Type | Servo Motor |
| Model Number | MSMF012L1C2M |
Panasonic MSMF012L1C2M Servo Motor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Low inertia |
| Protection Class | IP65 |
| Flange sq. Dimension | 38 mm sq. |
| Flange sq. Dimension (Unit:mm) | 38 |
| Motor Lead-out Configuration | Lead wire |
| Motor Encoder Connector | Lead wire |
| Power Supply Capacity (kVA) | 0.5 |
| Voltage Specifications (V) | 200 |
| Rated Output (W) | 100 |
| Rated Current (A (rms)) | 1.1 |
| Shaft | Round |
| Rated Torque (N β m) | 0.32 |
| Continuous Stall Torque (N β m) | 0.32 |
| Momentary Max. Peak Torque (N β m) | 0.95 |
| Max. Current (A (o-p)) | 4.7 |
| Rated Rotational Speed (r/min) | 3000 |
| Rated Rotational Max. Speed (r/min) | 6000 |
| Moment of Inertia of Rotor ( x10-4 kg β mΒ²) | 0.048 |
IndMALL Automation offers the cutting-edge Panasonic 200V AC Servo Motor MSMF012L1C2M at the best prices. This MSMF012L1C2M servo motor spans a power range of 50W to 22kW and supports DC 24V/48V and AC 100V/200V/400V input. It features a 23-bit absolute/incremental encoder and a 3.2 kHz frequency response for high-performance automation tasks. For more details, download the MSMF012L1C2M datasheet or refer to the MSMF012L1C2M manual. Get the MSMF012L1C2M price in Maharashtra, Mumbai, Pune, Gujarat, Ahmedabad, Vadodara, Rajkot, Delhi NCR, Noida, Gurgaon, Faridabad, Tamil Nadu, Chennai, Coimbatore, Tirupur, Bangalore, Karnataka, Mysore, Telangana, Secunderabad, Hyderabad, Andhra Pradesh, Sri City, Visakhapatnam, West Bengal, Kolkata, Durgapur, Bhubaneswar, Odisha, Jamshedpur, Jharkhand, Indore, Madhya Pradesh, Bhiwadi, Rajasthan, Ludhiana, Punjab.
