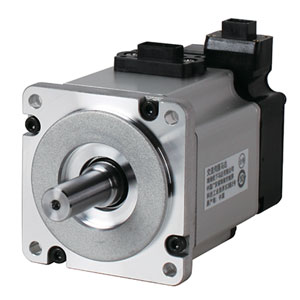

Panasonic MSMF011L1U2Servo Motor
The Panasonic MSMF011L1U2 Servo Motor offers a Low inertia type, 38 mm sq. dimension, Key-way, center tap shaft, and 0.32 rated torque. Manufactured by Panasonic under the Panasonic Servo Motor category, this model belongs to the MSMF Series.
| Brand | Panasonic |
| Product Type | Servo Motor |
| Model Number | MSMF011L1U2 |
Panasonic MSMF011L1U2Servo Motor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Low inertia |
| Protection Class | IP65 |
| Flange sq. Dimension | 38 mm sq. |
| Flange sq. Dimension (Unit:mm) | 38 |
| Motor Lead-out Configuration | Lead wire |
| Motor Encoder Connector | Lead wire |
| Power Supply Capacity (kVA) | 0.4 |
| Voltage Specifications (V) | 100 |
| Rated Output (W) | 100 |
| Rated Current (A (rms)) | 1.6 |
| Shaft | Key-way, center tap |
| Rated Torque (N β m) | 0.32 |
| Continuous Stall Torque (N β m) | 0.32 |
| Momentary Max. Peak Torque (N β m) | 0.95 |
| Max. Current (A (o-p)) | 6.9 |
| Rated Rotational Speed (r/min) | 3000 |
| Rated Rotational Max. Speed (r/min) | 6000 |
| Moment of Inertia of Rotor ( x10-4 kg β mΒ²) | 0.048 |
Please speak to our Technical Engineer for Panasonic Low Inertia, 100V Servo Motor MSMF011L1U2 at attractive prices. The MSMF011L1U2 features a broad power range from 50W to 22kW, input power supply options (DC 24V/48V, AC 100V/200V/400V), and a 23-bit Absolute/Incremental encoder. It offers low inertia for quick acceleration and a frequency response of 3.2 kHz. For technical specifications, download the MSMF011L1U2 datasheet or consult the MSMF011L1U2 manual. Secure the best MSMF011L1U2 price in Maharashtra, Gujarat, Delhi NCR, Tamil Nadu, Karnataka, Telangana, Andhra Pradesh, West Bengal, Odisha, Jharkhand, Madhya Pradesh, Rajasthan, and Punjab.
