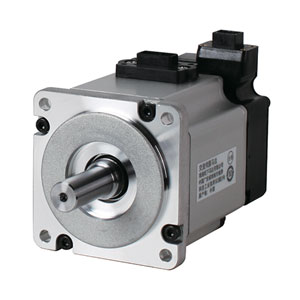

Panasonic MSMF011L1S2Servo Motor
The Panasonic MSMF011L1S2 Servo Motor offers a Low inertia type, 38 mm sq. dimension, Key-way, center tap shaft, and 0.32 rated torque. Manufactured by Panasonic under the Panasonic Servo Motor category, this model belongs to the MSMF Series.
| Brand | Panasonic |
| Product Type | Servo Motor |
| Model Number | MSMF011L1S2 |
Panasonic MSMF011L1S2Servo Motor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Low inertia |
| Protection Class | IP65 |
| Flange sq. Dimension | 38 mm sq. |
| Flange sq. Dimension (Unit:mm) | 38 |
| Motor Lead-out Configuration | Lead wire |
| Motor Encoder Connector | Lead wire |
| Power Supply Capacity (kVA) | 0.4 |
| Voltage Specifications (V) | 100 |
| Rated Output (W) | 100 |
| Rated Current (A (rms)) | 1.6 |
| Shaft | Key-way, center tap |
| Rated Torque (N β m) | 0.32 |
| Continuous Stall Torque (N β m) | 0.32 |
| Momentary Max. Peak Torque (N β m) | 0.95 |
| Max. Current (A (o-p)) | 6.9 |
| Rated Rotational Speed (r/min) | 3000 |
| Rated Rotational Max. Speed (r/min) | 6000 |
| Moment of Inertia of Rotor ( x10-4 kg β mΒ²) | 0.048 |
Mail Us for your needs in Panasonic A6 100W Servo Motor MSMF011L1S2 with budget-friendly prices. The MSMF011L1S2 offers a power range from 50W to 22kW, input power supply options (DC 24V/48V, AC 100V/200V/400V), and a 23-bit Absolute/Incremental encoder for precise motion control. It also features a frequency response of 3.2 kHz. For more details, download the MSMF011L1S2 datasheet or refer to the MSMF011L1S2 manual. Take advantage of the competitive MSMF011L1S2 price in Maharashtra, Gujarat, Delhi NCR, Tamil Nadu, Karnataka, Telangana, Andhra Pradesh, West Bengal, Odisha, Jharkhand, Madhya Pradesh, Rajasthan, and Punjab.
