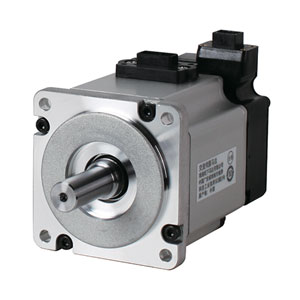

Panasonic MSMF011L1D2 Servo Motor
The Panasonic MSMF011L1D2 Servo Motor offers a Low inertia type, 38 mm sq. dimension, Round shaft, and 0.32 rated torque. Manufactured by Panasonic under the Panasonic Servo Motor category, this model belongs to the MSMF Series.
| Brand | Panasonic |
| Product Type | Servo Motor |
| Model Number | MSMF011L1D2 |
Panasonic MSMF011L1D2 Servo Motor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Low inertia |
| Protection Class | IP65 |
| Flange sq. Dimension | 38 mm sq. |
| Flange sq. Dimension (Unit:mm) | 38 |
| Motor Lead-out Configuration | Lead wire |
| Motor Encoder Connector | Lead wire |
| Power Supply Capacity (kVA) | 0.4 |
| Voltage Specifications (V) | 100 |
| Rated Output (W) | 100 |
| Rated Current (A (rms)) | 1.6 |
| Shaft | Round |
| Rated Torque (N β m) | 0.32 |
| Continuous Stall Torque (N β m) | 0.32 |
| Momentary Max. Peak Torque (N β m) | 0.95 |
| Max. Current (A (o-p)) | 6.9 |
| Rated Rotational Speed (r/min) | 3000 |
| Rated Rotational Max. Speed (r/min) | 6000 |
| Moment of Inertia of Rotor ( x10-4 kg β mΒ²) | 0.051 |
Get A Quote for Panasonic Servo Motor 100W MSMF011L1D2 at the best price. The MSMF011L1D2 features a 50W-22kW power range, DC/AC input options, and a 23-bit encoder for precise motion control. It offers unmatched precision and versatility for various applications. For more information, download the MSMF011L1D2 datasheet or refer to the MSMF011L1D2 manual. Donβt miss out on the competitive MSMF011L1D2 price in Maharashtra, Gujarat, Delhi NCR, Tamil Nadu, Karnataka, Telangana, Andhra Pradesh, West Bengal, Odisha, Jharkhand, Madhya Pradesh, Rajasthan, and Punjab.
