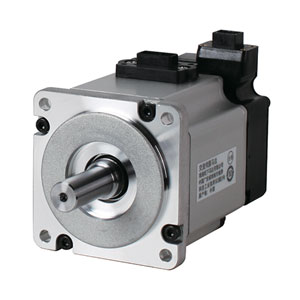

Panasonic MSMF011L1A2 Servo Motor
The Panasonic MSMF011L1A2 Servo Motor offers a Low inertia type, 38 mm sq. dimension, Round shaft, and 0.32 rated torque. Manufactured by Panasonic under the Panasonic Servo Motor category, this model belongs to the MSMF Series.
| Brand | Panasonic |
| Product Type | Servo Motor |
| Model Number | MSMF011L1A2 |
Panasonic MSMF011L1A2 Servo Motor β Technical Specifications
| Specification | Value |
|---|---|
| Type | Low inertia |
| Protection Class | IP65 |
| Flange sq. Dimension | 38 mm sq. |
| Flange sq. Dimension (Unit:mm) | 38 |
| Motor Lead-out Configuration | Lead wire |
| Motor Encoder Connector | Lead wire |
| Power Supply Capacity (kVA) | 0.4 |
| Voltage Specifications (V) | 100 |
| Rated Output (W) | 100 |
| Rated Current (A (rms)) | 1.6 |
| Shaft | Round |
| Rated Torque (N β m) | 0.32 |
| Continuous Stall Torque (N β m) | 0.32 |
| Momentary Max. Peak Torque (N β m) | 0.95 |
| Max. Current (A (o-p)) | 6.9 |
| Rated Rotational Speed (r/min) | 3000 |
| Rated Rotational Max. Speed (r/min) | 6000 |
| Moment of Inertia of Rotor ( x10-4 kg β mΒ²) | 0.048 |
IndMALL Offers Panasonic MSMF011L1A2 model, perfect for those needing power from 50 W to 22 kW. It works with DC 24 V/48 V and AC 100 V/200 V/400 V inputs and features a 23-bit Absolute/Incremental encoder, plus a battery-less option. With a 3.2 kHz frequency response, it's ideal for precise control. Get the best MSMF011L1A2 Price at IndMALL Automation. Download the MSMF011L1A2 Datasheet and refer to the MSMF011L1A2 Manual for installation guidelines. Available in Maharashtra Mumbai, Pune, Gujarat Ahmedabad, Vadodara, Delhi NCR Noida, Gurgaon, Tamil Nadu Chennai, Coimbatore, Karnataka Bangalore, Telangana Secunderabad, and more.
