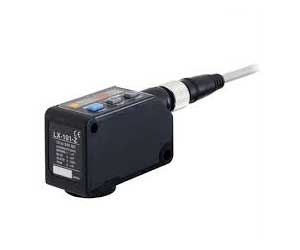

LX-101-P-Z: Panasonic PNP Color Sensor
Technical Specifications of LX-101-P-Z Panasonic PNP Color Sensor
| Output | PNP open-collector transistor |
| Connection | Plug-in Connector Type |
| Sensing range | 10 Β±3 mm |
| Supply voltage | 12 to 24 V DC |
Panasonic NPN Color Sensor LX-101-P-Z Technical Specifications:
| Specification | Value |
|---|---|
| Output | PNP open-collector transistor |
| Connection | Plug-in Connector Type |
| Sensing Range | 10 Β±3 mm |
| Spot size | 1 Γ 5 mm 0.039 Γ 0.197 in (at 10 mm 0.394 in setting distance) |
| Supply Voltage | 12 to 24 V DC |
| Current Consumption | Normal mode: 750 mW or less |
| Short-circuit Protection | Incorporated |
| Output Operation Mark Mode | Light-ON / Dark-ON (Auto-setting on teaching) |
| Output Operation Color Mode | Consistent-ON / Inconsistent-ON (Setting on teaching) |
| Response Time | Mark mode: 45 Β΅s or less, Color mode: 150 Β΅s or less |
| Digital Display | 4-digit red LED display |
| Sensitivity Setting | Mark mode: 2-level teaching / Full-auto teaching, Color mode: 1-level teaching |
| Fine Sensitivity Adjustment Function | Incorporated |
| Timer function | Incorporated with variable ON-delay/OFF-delay timer, switchable either effective or ineffective (Timer period: 1 to 500 ms, 9 levels variable) |
| Protection | IP67 (IEC) |
| Ambient Temperature | β10 to +55 Β°C +14 to +131 Β°F (No dew condensation or icing allowed), Storage: β20 to +70 Β°C β4 to +158 Β°F |
| Ambient Humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 βx or less at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Vibration Resistance | 10 to 500 Hz frequency, 3.0 mm 0.118 in double amplitude (max. 20 G) in X, Y and Z directions for two hours each |
| Shock Resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each |
| Emitting Element | Combined Red / Green / Blue LEDs (Peak emission wavelength: 640 nm 0.025 mil / 525 nm 0.021 mil / 470 nm 0.019 mil) |
| Material | Enclosure: PBT, Display cover: Polycarbonate, Operation buttons: Silicone rubber, Lens: Glass, Lens holder: Aluminum |
| Cable | NA |
| Cable Extension | Extension up to total 100 m 328.084 ft is possible with 0.3 mm2 , or more, cable |
| Weight | Net weight: 55 g approx., Gross weight: 120 g approx |
| Accessory | M4 (length 30 mm 1.181 in) screw with washers: 2 pcs. |
LX-101-P-Z from Panasonic is a precision-built Color Mark Sensor designed for high-speed detection of color marks and registration points on packaging, labeling, and printing machines. This Panasonic PNP Color Mark Sensor offers excellent color differentiation, compact design, and quick setup, making it ideal for Indian industrial automation environments that demand speed and accuracy. The LX-101-P-Z provides consistent performance even under fluctuating light or temperature conditions, ensuring precise color mark detection and stable process control.
The Panasonic LX-101-P-Z PNP Color Mark Sensor integrates a PNP open-collector transistor output with a plug-in connector type, ensuring quick installation and easy maintenance. With a sensing range of 10 Β±3 mm and a spot size of 1 Γ 5 mm at a 10 mm distance, it achieves highly accurate mark detection on film, label, and paper surfaces. Its RGB LED emitter (640 nm red / 525 nm green / 470 nm blue) enables stable contrast recognition across glossy and matte materials. The response time of 45 Β΅s in mark mode and 150 Β΅s in color mode delivers real-time performance on high-speed production lines. Additional intelligent features like 2-level or full-auto teaching (mark mode), 1-level teaching (color mode), and adjustable ON/OFF delay timers (1β500 ms) improve flexibility in different setups. Operating at 12β24 V DC with low power consumption (~750 mW), the LX-101-P-Z includes short-circuit protection and an IP67-rated enclosure for durability in harsh plant conditions. The display uses a 4-digit red LED screen for clear feedback, while its rugged PBT and aluminum housing ensures long service life even in vibration-prone installations. All these technical refinements make the Panasonic LX-101-P-Z a trusted choice for industrial engineers focused on precision and uptime.
In application, the LX-101-P-Z proves ideal for detecting registration marks on printed packaging films, bottle labels, and shrink sleeves in fast-moving packaging lines. Its RGB LED system detects even faint color differences between print marks and backgrounds, maintaining high reliability at conveyor speeds exceeding several hundred units per minute. Maintenance engineers can use the auto-teaching feature to simplify setup and calibration during line changeovers. The built-in variable ON/OFF delay timer prevents false triggering due to mechanical vibration or line fluctuations, while the IP67 protection ensures performance even under humid, dusty, or washdown environments. For OEMs and end users seeking dependable color-sensing in compact form factors, the Panasonic PNP Color Mark Sensor LX-101-P-Z delivers unmatched stability and repeatability.
Engineers often search for LX-101-P-Z price LX-101-P-Z datasheet and LX-101-P-Z manual while evaluating this model. Pricing varies based on quantity and configuration, while the datasheet provides comprehensive electrical and optical parameters. The LX-101-P-Z manual explains setup modes, timer configuration, and color calibration steps for production engineers. Whether you search for LX 101 P Z or Panasonic PNP Color Mark Sensor LX-101-P-Z, both refer to the same high-precision model trusted across packaging and labeling automation lines. For further details or procurement, refer to the official Panasonic product page or contact IndMALL Automation for competitive LX-101-P-Z pricing and support.
