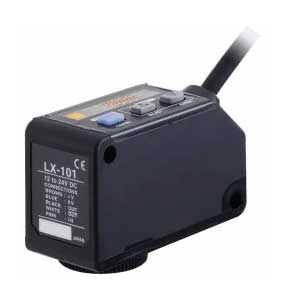

LX-101-P: Panasonic Color Sensor
Technical Specifications of LX-101-P Panasonic Color Sensor
| Output | PNP open-collector transistor |
| Connection | Cable Type |
| Sensing range | 10 ยฑ3 mm |
| Supply voltage | 12 to 24 V DC |
Panasonic Color Sensor LX-101-P Technical Specifications:
| Specification | Value |
|---|---|
| Output | PNP open-collector transistor |
| Connection | Cable Type |
| Sensing Range | 10 ยฑ3 mm |
| Spot size | 1 ร 5 mm 0.039 ร 0.197 in (at 10 mm 0.394 in setting distance) |
| Supply Voltage | 12 to 24 V DC |
| Current Consumption | Normal mode: 750 mW or less |
| Short-circuit Protection | Incorporated |
| Output Operation Mark Mode | Light-ON / Dark-ON (Auto-setting on teaching) |
| Output Operation Color Mode | Consistent-ON / Inconsistent-ON (Setting on teaching) |
| Response Time | Mark mode: 45 ยตs or less, Color mode: 150 ยตs or less |
| Digital Display | 4-digit red LED display |
| Sensitivity Setting | Mark mode: 2-level teaching / Full-auto teaching, Color mode: 1-level teaching |
| Fine Sensitivity Adjustment Function | Incorporated |
| Timer function | Incorporated with variable ON-delay/OFF-delay timer, switchable either effective or ineffective (Timer period: 1 to 500 ms, 9 levels variable) |
| Protection | IP67 (IEC) |
| Ambient Temperature | โ10 to +55 ยฐC +14 to +131 ยฐF (No dew condensation or icing allowed), Storage: โ20 to +70 ยฐC โ4 to +158 ยฐF |
| Ambient Humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 โx or less at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Vibration Resistance | 10 to 500 Hz frequency, 3.0 mm 0.118 in double amplitude (max. 20 G) in X, Y and Z directions for two hours each |
| Shock Resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each |
| Emitting Element | Combined Red / Green / Blue LEDs (Peak emission wavelength: 640 nm 0.025 mil / 525 nm 0.021 mil / 470 nm 0.019 mil) |
| Material | Enclosure: PBT, Display cover: Polycarbonate, Operation buttons: Silicone rubber, Lens: Glass, Lens holder: Aluminum |
| Cable | 0.2 mm2 5-core cabtyre cable, 2 m 6.562 ft long |
| Cable Extension | Extension up to total 100 m 328.084 ft is possible with 0.3 mm2 , or more, cable |
| Weight | Net weight: 120 g approx., Gross weight: 180 g approx. |
| Accessory | M4 (length 30 mm 1.181 in) screw with washers: 2 pcs. |
IndMALL Automation offers Panasonic Color Sensor LX-101-P at the best prices. Here are the brief Technical Specifications of the LX-101-P Panasonic Color Sensor: PNP Open Collector transistor, Supply Voltage of 24VDC, Cable Type with 2 Meter Cable Length, and Sensing distance of 10mm, You can use it in Light on Mode or Dark On Mode. And this Model offers a 4-digit LED Display, And it offers an On Delay Timer & Off Delay Timer, and IP67 (IEC) Protection. Get a Quote for Panasonic Color Sensor we can assure you our prices and support are better than Authorized Panasonic Distributors and Panasonic Dealers.
