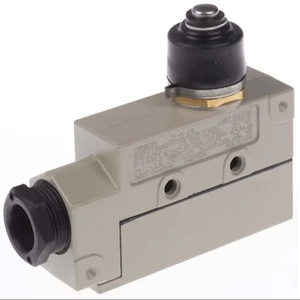

Omron ZE-Q22-2 Limit Switch
The Omron ZE-Q22-2 Limit Switch offers Roller plunger actuator, General purpose shape, Side mounting mounting. Manufactured by Omron under the Omron Limit Switch category, this model belongs to the ZE Series.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | ZE-Q22-2 |
Omron ZE-Q22-2 Limit Switch β Technical Specifications
| Specification | Value |
|---|---|
| Shape Structure | General purpose |
| Ambient Temperature | β10Β°C to +80Β°C (with no icing) |
| Ambient Humidity | General-purpose type: 35% to 85%RH Sealed type: 35% to 95%RH |
| Shock Resistance | Destruction: 1,000m/s2 max. Malfunction: 100 m/s2 max. 50 m/s2 max |
| Degree Of Protection | IP65 |
| Durability | Mechanical: 10,000,000 operations min. Electrical: 500,000 operations min., for 15 A, 250 VAC resistive load |
| Insulation Resistance | 100 MΞ© min. (at 500 VDC) |
| Built In Switch | SPDT (AC) |
| Mounting Direction | Side mounting |
| Dielectric Strength | Between terminals of the same polarity: 1,000 VAC, 50/60 Hz for 1 min Between current-carrying metal part and ground: 2,000 VAC, 50/60 Hz for 1 min Between each terminal and non-current-carrying metal part: 2,000 VAC, 50/60 Hz for 1 min |
| Actuator | Roller plunger |
| Vibration Resistance | Malfunction: 10 to 55 Hz, 1.5-mm double amplitude |
| Operating Speed | 0.01 mm/s to 0.5 m/s |
| Operating Frequency | Mechanical: 120 operations/min Electrical: 20 operations/min |
| Contact Resistance | 15 mΞ© max. (initial value) |
| Rated Frequency | 50/60 Hz |
| Weight | Approx. 260 to 280 g |
The Omron ZE-Q22-2 is a durable enclosed limit switch designed for general-purpose applications requiring precise mechanical control. It features a roller plunger actuator and SPDT (AC) contact configuration, suitable for both mechanical and electrical operation cycles. The switch operates at speeds from 0.01 mm/s to 0.5 m/s and supports up to 120 mechanical and 20 electrical operations per minute.
With a rated electrical life of 500,000 operations at 15 A, 250 VAC and a mechanical life of at least 10 million operations, it ensures long-term reliability. The ZE-Q22-2 offers excellent insulation (100 Mβ¦ min.), low contact resistance (15 mβ¦ max.), and withstands dielectric strengths up to 2,000 VAC. Operating between β10Β°C and 80Β°C with high resistance to shock and vibration, itβs ideal for various industrial control systems. The sealed body construction provides strong environmental durability with IP65 protection.
