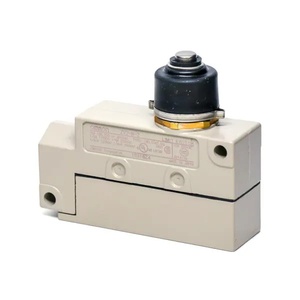

Omron ZV2-NA2-2 Limit Switch
Omron ZV2-NA2-2 is a sealed enclosed limit switch with a roller arm lever for machine position and travel detection. The booted actuator supports protected mechanical operation, while diagonal side mounting suits layouts where the lever must be reached from the side. Its SPDT AC contact configuration supports 15 A at 250 VAC resistive-load switching, and the 0.02 mm/s to 0.5 m/s operating-speed range covers slow and faster mechanical movement. IP65 protection supports use around dust or moisture. The ZV2-NA2-2 belongs to the ZV2 Series within the sealed roller arm limit switch range from Omron control components for position, travel, and end-point sensing.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | ZV2-NA2-2 |
Omron ZV2-NA2-2 Limit Switch – Technical Specifications
| Specification | Value |
|---|---|
| Shape Structure | Sealed (Booted) |
| Ambient Temperature | −10°C to +80°C (with no icing) |
| Ambient Humidity | General-purpose type: 35% to 85%RH Sealed type: 35% to 95%RH |
| Shock Resistance | Destruction: 1,000m/s2 max. Malfunction: 100 m/s2 max. 50 m/s2 max |
| Degree Of Protection | IP65 |
| Durability | Mechanical: 10,000,000 operations min. Electrical: 500,000 operations min., for 15 A, 250 VAC resistive load |
| Insulation Resistance | 100 MΩ min. (at 500 VDC) |
| Built In Switch | SPDT (AC) |
| Mounting Direction | Diagonal side mounting |
| Dielectric Strength | Between terminals of the same polarity: 1,000 VAC, 50/60 Hz for 1 min Between current-carrying metal part and ground: 2,000 VAC, 50/60 Hz for 1 min Between each terminal and non-current-carrying metal part: 2,000 VAC, 50/60 Hz for 1 min |
| Actuator | Sealed roller arm lever |
| Vibration Resistance | Malfunction: 10 to 55 Hz, 1.5-mm double amplitude |
| Operating Speed | 0.02 mm/s to 0.5 m/s |
| Operating Frequency | Mechanical: 120 operations/min Electrical: 20 operations/min |
| Contact Resistance | 15 mΩ max. (initial value) |
| Rated Frequency | 50/60 Hz |
| Weight | Approx. 260 to 280 g |
The Omron ZV2-NA2-2 Limit Switch uses a sealed roller arm lever with a booted enclosure for machine position and travel detection. The roller arm suits cams and moving parts that sweep across the actuator, while diagonal side mounting supports layouts where the lever must be reached from an angled side position. Its built-in SPDT AC switch supports 15 A at 250 VAC resistive load, and operating speed ranges from 0.02 mm/s to 0.5 m/s. The switch supports up to 120 mechanical and 20 electrical operations per minute. IP65 protection supports enclosed roller-arm switching around dust or moisture.
Mechanical durability is specified at 10 million operations minimum, while electrical durability reaches 500,000 operations minimum at 15 A, 250 VAC resistive load. Initial contact resistance is 15 mΩ maximum, and insulation resistance is 100 MΩ minimum at 500 VDC. The ZV2-NA2-2 operates from -10 to 80°C, with sealed-type humidity support up to 95% RH. Destructive shock resistance reaches 1,000 m/s² maximum, while malfunction vibration resistance covers 10 to 55 Hz at 1.5 mm double amplitude. These characteristics suit roller-arm sensing where diagonal side mounting and AC switching are preferred. For a related ZV model using a sealed roller arm with base mounting, see the ZV-NA2-2 model.
