Omron Safety Light Curtain — Machine Safety Light Barriers

An Omron Safety Light Curtain is a non-contact electro-sensitive protective device used to safeguard operators from hazardous machine motion. Designed and manufactured by Omron Corporation, these systems create an invisible infrared protective field that immediately stops machinery when a person enters the danger zone.

In Indian manufacturing environments—such as automotive body shops, packaging plants, pharmaceutical lines, and heavy machinery workshops—machine safety is governed by strict safety audits and international compliance frameworks. Safety Light Curtains help achieve Type 2 and Type 4 safety classification, Performance Level (PLc, PLd, PLe), and SIL2 / SIL3 ratings, ensuring alignment with global machine safety standards.

By combining OSSD safety outputs, External Device Monitoring (EDM), and integration with safety relays or safety PLCs, Omron Safety Light Curtains form a critical layer of protection within modern machine safety systems.

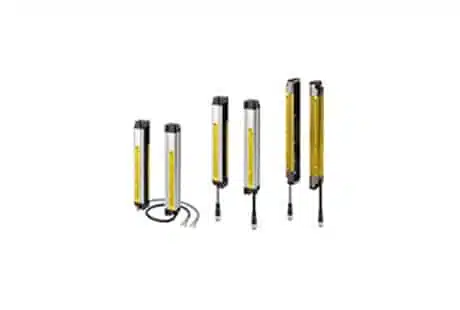

Omron Safety Light Curtain – F3SJ Series

Types: EASY (F3SJ-E), BASIC (F3SJ-B), ADVANCED (F3SJ-A).
Detection: Finger (14 mm) and hand/arm (30 mm).
Beam Gap: 9 mm (F3SJ-A14), 25 mm (F3SJ-A30).
Protective Height: 245 mm to 2,495 mm.
Operating Range: Up to 9 m.
Response Time: 10 ms to 25 ms; Voltage: 24 VDC±20%.
Outputs: PNP transistor, 300 mA max; Protection: IP65.

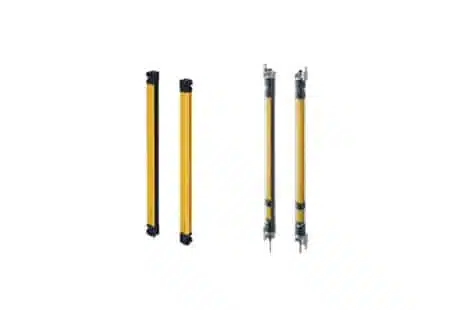

Omron Light Curtains – F3SG-SR / PG Series

Sensing Method: Safety light curtain.
Safety Types: Type 2 and Type 4 according to IEC 61496-1.
Protection Types: Finger, hand, arm/leg, and body protection.
Detection Capability: Ranges from 14 mm to 85 mm.
Safety Field Height: Various, up to 1600 mm.
Beam Spacing: From 10 mm to 80 mm.
Maximum Safety Range: Up to 20 m.
Degree of Protection: IP65/IP67/IP67G.

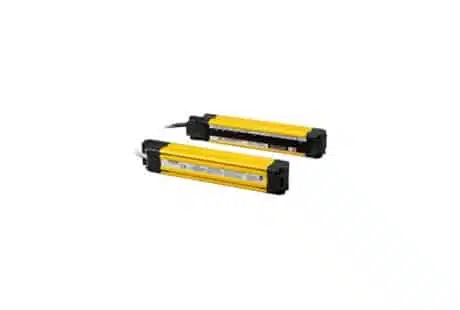

Omron Safety Curtains – F3W-MA Series

Beam Gap: 100 mm or 300 mm; Beams: 8 or 20 beams.
Detection Object: 30 mm diameter.
Operating Range: 0.3 to 20.0 m (long), 0.3 to 7.0 m (short).
Response Time: 13 ms max; Light Source: Infrared LEDs, 870 nm.
Voltage: 24 VDC±20%; Outputs: Two PNP transistor outputs.
Current Consumption: Emitter 35-45 mA, receiver 75 mA.
Temperature Range: Operating -10 to 55°C.
Protection: IP65, IP67.

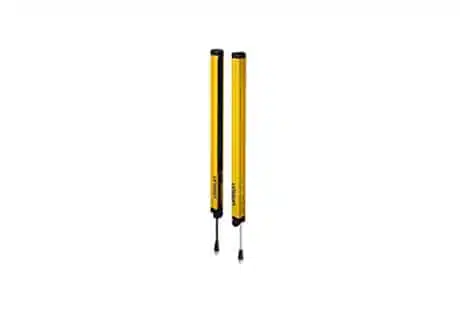

Omron Light Curtain Sensor – F3SG-R Series

Object Resolution: 25-mm diameter detection.
Beam Gap: 20 mm; Number of Beams: 8 to 96.
Protective Height: 185 to 1945 mm.
Operating Range: 0.3 to 17.0 m (long), 0.3 to 5.0 m (short).
Response Time: 8 to 13 ms (ON to OFF), 40 to 65 ms (OFF to ON).
Light Source: Infrared LEDs, 870 nm; Power Supply: 24 VDC±20%.
Outputs: Two PNP/NPN transistor outputs, 300 mA max.

Omron Safety Light Curtain Suppliers

Omron Safety Light Curtain Technology

Type 4 Safety Architecture & Performance Level

Type 4 Safety Light Curtains are designed for the highest level of personnel protection in high-risk machinery. Omron devices achieve Performance Level e (PLe) and SIL3 when integrated correctly within Safety Category 4 circuits.

They use redundant internal diagnostics, cross-monitoring circuits, and continuous self-check mechanisms. Combined with External Device Monitoring (EDM), these systems verify downstream contactors and prevent restart under unsafe conditions. This architecture is essential in robotic cells and press applications where risk severity is high.

Resolution, Detection & Protective Height

Resolution determines what size object is detected:

14 mm resolution – finger protection
30 mm resolution – hand protection
40 mm resolution – body protection

Protective height and detection height are selected based on the hazard zone. Omron offers varying operating ranges, enabling coverage from compact assembly stations to large automotive welding cells.

Safety Outputs & Control Integration

Omron Safety Light Curtains provide dual-channel OSSD outputs for safe machine stopping. These outputs connect to:

Omron G9SE Safety Relay
Omron NX Safety PLC
Omron safety controllers

Configuration and monitoring are managed through Sysmac Studio, Omron’s TIA-equivalent programming platform. Integration within the broader Omron automation ecosystem ensures coordinated safety logic across motion, PLC, and robotics systems.

Muting, Blanking & Advanced Safety Functions

Industrial processes such as pallet transfer require temporary suspension of protective beams.

Muting function allows material passage without stopping the machine.
Blanking function disables specific beams for fixed obstructions.
Floating blanking supports dynamic obstruction handling.
Cascading enables extended protective fields across machine sections.

These advanced functions maintain safety compliance while enabling continuous production.

Environmental Durability & Industrial Design

Omron Safety Light Curtains are built for industrial conditions with:

High IP rating protection
Wide ambient temperature range
Vibration resistance for heavy machinery
Shock resistance for harsh environments

This ensures reliable operation in automotive plants, pharmaceutical filling lines, and heavy fabrication workshops across India.

How to Select Omron Safety Light Curtain

Selection must begin with a documented risk assessment.

Determine Required Safety Category: Identify whether Category 2, 3, or 4 is required. High-risk machines typically require Type 4 / PL e / SIL3.
Choose Resolution: 14 mm → finger protection;30 mm → hand protection; 40 mm → body protection
Define Protective Height: Based on access opening and hazard exposure zone.
Calculate Safety Distance: Use machine stopping time and approach speed to determine minimum installation distance.
Integration Method: Select between Safety Relay (G9SE) or NX Safety PLC depending on system complexity.
Environmental Conditions: Consider IP rating, ambient temperature, vibration, and contamination.
Maintenance & Diagnostics: Ensure availability of status indicators and EDM monitoring for periodic validation.

Why Industries Choose Omron Safety Light Curtains

TÜV-Certified Safety Design: Omron’s safety components comply with international machine safety standards and structured certification processes.
High Performance Level e Capability: Support for PLe and SIL3 ensures suitability for high-risk machinery.
Flexible System Configuration: Supports cascading, muting, blanking, and zone control for complex automation.
Seamless Omron Ecosystem Integration: Integrated with Omron PLCs, motion controllers, and safety relays via Sysmac Studio.
Long-Term Reliability: Industrial-grade construction ensures stable operation in demanding Indian manufacturing environments.

Frequently Asked Questions

What is a Safety Light Curtain?

A safety light curtain is a safety tool. It uses light beams to detect anything that passes through. If something breaks the light beams, like a hand, the machinery stops immediately.

This curtain is like an invisible fence around dangerous machines. When the beams are blocked, the machine knows someone or something is close. So, it stops to prevent harm.

Many factories and workplaces use this tool. It helps keep workers safe around big or dangerous equipment. Safety light curtains are a smart way to reduce accidents.

How Do Safety Light Curtains Work?

Safety light curtains have two parts: a sender and a receiver. The sender shoots out many light beams. The receiver catches these beams on the other side.

When nothing is in the way, the light beams travel straight. If something, like a hand, blocks these beams, the receiver notices. It then sends a signal to stop the machine immediately.

This quick response is very important. It helps stop the machine before someone gets hurt. So, safety light curtains are like invisible safety guards for machines.

What is the Function of the Safety Light Curtain?

A safety light curtain’s main job is to protect. It acts like an invisible barrier around machines. When this barrier is broken, the machine stops.

This tool detects things like hands or objects. If they come too close or enter a danger zone, the curtain senses it. The machine then shuts down quickly to prevent injury.

In short, safety light curtains are like alarms. They alert and stop machines if there’s a risk to people or things nearby.

What is Safety Light Curtain Sensor?

A safety light curtain sensor is a safety device. It uses beams of light to form an invisible barrier. If this light barrier is broken, it sends a signal.

This signal usually stops a machine or equipment. For example, if a person’s hand interrupts the light beams, the sensor acts fast. The machine stops to prevent potential harm.

So, this sensor is like a watchful eye. It helps ensure that workers are safe around big and dangerous machines.

How do I choose the right model for my needs?

Choosing the right Omron Safety Light Curtain depends on your specific needs. Consider the area size and the type of machinery you’re using. Look at features like range, response time, and ease of installation. It’s important to match the curtain’s specifications with your safety requirements.

For detailed advice tailored to your situation, feel free to reach out. We can help you find the perfect model that fits your industrial setup.
