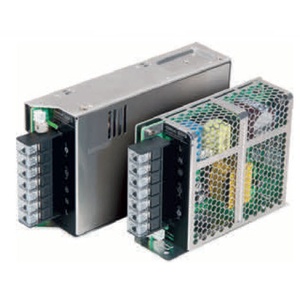

The Omron S8FS-G60012CD Power Supply provides a 600 W, 12 VDC output with 50 A rated current for industrial systems requiring high-current DC power distribution. A 100 to 240 VAC input at 50/60 Hz supplies the unit, which converts AC power for compatible 12 VDC equipment. DIN rail mounting allows the power supply to become part of an organized control cabinet layout, while screw terminals provide secure electrical connections to incoming power and downstream loads. Its high current capacity distinguishes the model within the 12 VDC product group. The S8FS-G60012CD links this configuration directly to the S8FS-G Series. For category-level comparison, other high-current SMPS models cover different voltage and power requirements. Related Omron control solutions can then form the sensing, switching, and control layers around the DC power system.
7.7 A typ.(at 100 VAC input)
3.8 A typ.(at 200 VAC input)
Input Leakage current
0.5 mA max.(at 100 VAC input)
1 mA max.(at 200 VAC input)
Input Frequency
50/60 Hz
Output indicator
Yes (color: green)
Output voltage variable range
-10 to +15 % (With V.ADJ)
Start-up time
1000 ms max.(at 100 VAC input)
1000 ms max.(at 200 VAC input)
Hold time
30 ms typ.(at 100 VAC input)
30 ms typ.(at 200 VAC input)
Vibration resistance
10 to 55 Hz, 4.5 G max., 0.375 mm single amplitude in each 3 directions for 2 hours
Shock resistance
150 m/s2, in each 6 directions 3 times
Ambient temperature (Operating)
-20 to 70 ?
Ambient temperature (Storage)
-25 to 75 ?
Ambient humidity (OperatingStorage)
90 %RH max.
Cooling fan
Yes
Weight
1050 g max.
The Omron S8FS-G60012CD is frequently assessed alongside related units in the Omron Switch Mode Power Supply range, as these SMPS models share comparable wiring behaviour, thermal characteristics, load endurance, and panel integration features. Engineers often evaluate related models such as Omron S8FS-G60015CD (600 W, 15 VDC, 40 A, DIN rail), Omron S8FS-C07512 (75 W, 12 VDC, 6.2 A, DIN rail) when configuring power rails for PLC racks, servo drives, motion assemblies, and distributed I/O terminals. Comparing specifications like power rating, output voltage behaviour, continuous output current, and mounting orientation helps maintain predictable voltage delivery across machinery with dynamic load patterns. The S8FS-G60012CD fits smoothly into conveyors, dosing modules, electrical frames, and compact control panels where a dependable Omron SMPS Power Supply is required. These related SMPS variants also support unified wiring layouts, easier spare handling, and consistent power distribution across multi-panel automation systems.
