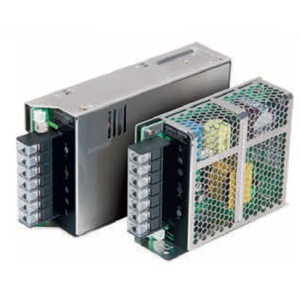

Omron S8FS-G15024CD Power Supply

Omron S8FS-G15024CD SMPS is a 150 W switch mode power supply designed to provide 24 VDC for industrial control equipment. It delivers 6.5 A rated output current and accepts 100 to 240 VAC input at 50/60 Hz. DIN rail mounting and screw terminals support structured installation and fixed electrical wiring inside control panels. Typical efficiency is specified at 87% with 100 VAC input, 89% with 200 VAC input, and 90% with 230 VAC input. A green indicator provides output status during operation. Within the S8FS-G Series, the S8FS-G15024CD provides a DIN rail 150 W, 24 VDC configuration. Compare other 150W 24V power supplies from Omron industrial automation.

Omron S8FS-G15024CD Power Supply
BrandOmron
ProductPower Supply
Model NumberS8FS-G15024CD

Omron S8FS-G15024CD Power Supply - Technical Specifications

SpecificationValue
Power rating150 W
Output voltage24 VDC
Rated output current6.5 A
Terminal typeScrew Terminal
Mounting methodDIN rail
ConnectionTerminal blocks
Efficiency87 % typ.(at 100 VAC input) 89 % typ.(at 200 VAC input) 90 % typ.(at 230 VAC input)
Rated input voltage100 to 240 VAC
Rated input current3 A typ.(at 100 VAC input) 1.8 A typ.(at 200 VAC input)
Input Leakage current0.5 mA max.(at 100 VAC input) 1 mA max.(at 200 VAC input)
Input Frequency50/60 Hz
Output indicatorYes (color: green)
Output voltage variable range-10 to +15 % (With V.ADJ)
Start-up time1000 ms max.(at 100 VAC input) 1000 ms max.(at 200 VAC input)
Hold time10 ms typ.(at 100 VAC input) 55 ms typ.(at 200 VAC input)
Vibration resistance10 to 55 Hz, 4.5 G max., 0.375 mm single amplitude in each 3 directions for 2 hours
Shock resistance150 m/s2, in each 6 directions 3 times
Ambient temperature (Operating)-20 to 70 ?
Ambient temperature (Storage)-25 to 75 ?
Ambient humidity (OperatingStorage)90 %RH max.
Cooling fanNo
Weight500 g max.

The Omron S8FS-G15024CD Power Supply provides 150 W rated power with a 24 VDC output and 6.5 A rated current. It accepts 100 to 240 VAC input at 50/60 Hz and uses DIN rail mounting with screw terminals for structured electrical-panel installation. Typical efficiency is specified at 87% with 100 VAC input, 89% with 200 VAC input, and 90% with 230 VAC input. These specifications position the model within the 24 VDC class, where output voltage and current demand should be confirmed before installation requirements are considered. The connected equipment should operate from 24 VDC and keep combined current demand within the 6.5 A rating. DIN rail mounting requires sufficient rail space, while screw-terminal access should be considered when planning input and output conductor routing.

The 100 to 240 VAC input range defines source-side compatibility independently from the 24 VDC requirement on the load side. Power rating should be evaluated together with current capacity rather than used alone when comparing models. A lower-capacity model with the same nominal output voltage can provide useful context because the connected load voltage remains unchanged while available current and power differ. For a 50 W direct-mount 24 VDC configuration supplying 2.2 A, compare the Omron S8FS-G05024CE.
